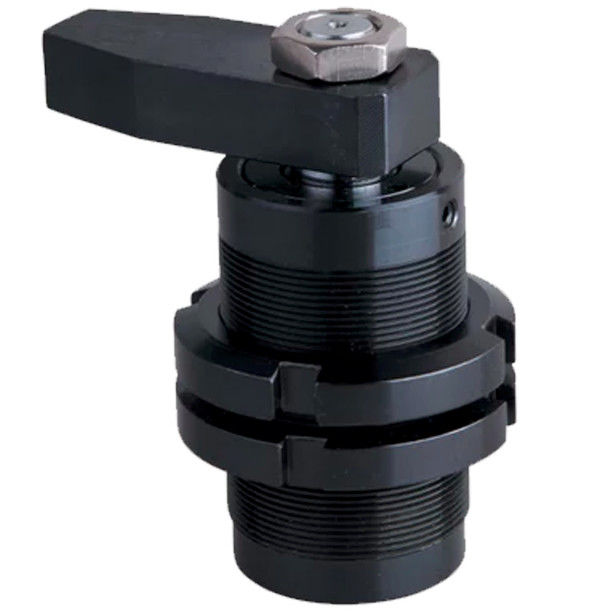

Threaded Hydraulic Swing Clamp Machining Center Work Fixture Max. Clamping Force 647kgs
Product Specification and features:
1. The product is ideal for mass production on a special purpose machine and jig on machining center, It will greatly upgrade production efficlency
2. When the hydraulic cylinder actuate, and the piston moves downward, the clamping arm will swing to a rated angle. Then it lowers until the workpiece is clamped securely
3. To avoid too fast motion a flow control valve is suggested to connect to the hydraulic swing clamp cylinder, Do not clamp workpiece while the calmp is swinging to avoid damaging on the cylinder barrel and internal parts
4. When increasing length of clamping arm is required, be sure do not exceed 1.5 times of the original length
5. The cylinder body is manufactured from structural carbon steel Surface is specially treated for maximum smoothness on inside surface and long service life
Product Specification
|
Bore of Cylinder (mm)
|
Φ25 | Φ32 | Φ40 | Φ50 | Φ63 |
|
Bore of Piston
|
Φ18 | Φ20 | Φ22.4 | Φ28 | Φ35.5 |
|
Swing Stroke (mm)
|
9 | 11 | 11 | 13 | 13 |
| Clamping Stroke (mm) | 13 | 15/30 | 15/30 | 17/34 | 17/34 |
| Press Area pull/push (cm²) | 2.37/4.91 | 4.9/8.04 | 8.63/12.57 | 13.47/19.63 | 21.28/31.17 |
|
Theoretical Clamping Force (30kg/ cm²) |
71 | 147 | 259 | 404 | 647 |
|
Fluid
|
Filtered oil | ||||
|
Max Pressure (kg/cm²)
|
100kg/cm² | ||||
| Range of pressure (kg/cm²) | 10-70kg/cm² | ||||
|
Rotating Direction
|
Turn Right or Turn Left
|
||||
|
Rotating Angle
|
Standard angle 90°,Optional angle 0°, 45°, 60° | ||||
|
Acting Type
|
Double Acting
|
||||
