Material: | Carbon Steel | Maximum Stroke:: | 9~13MM |
---|---|---|---|
Shaft Diameter: | 25~63MM | Fluid:: | Filtered Oil |
Max Pressure: | 100 Kg Per Square Centimeter | Range Of Press:: | 10-70 Kg Per Square Centimeter |
Rotating Direction:: | Turn Right L Or Turn Left R | Rotating Angle:: | Standard Angle 90° |
Acting Type:: | Double Acting | ||
High Light: | hydraulic workholding clamping fixture,swing cylinder clamps |

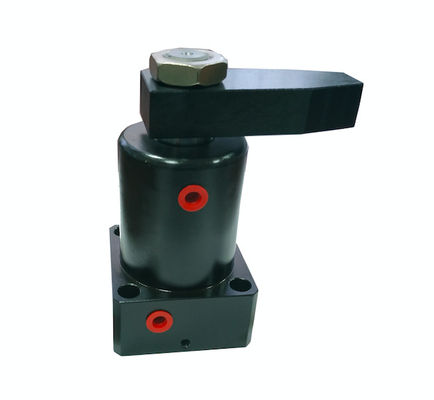

Oil Driven Rotary Clamp Carbon Steel Hydraulic Cylinder CNC Machine Fixture
Specification
Bore of cylinder(mm) | 25 | 32 | 40 | 50 | 63 |
Bore of piston(mm) | 18 | 20 | 22 | 28 | 35 |
Swing stroke(mm) | 9 | 11 | 11 | 13 | 13 |
Clamping stroke(mm)std/incr | 13 | 15/30 | 15/30 | 17/34 | 17/34 |
Pressure area pull/push(cm²) | 2.37/4.91 | 4.9/8.04 | 8.63/12.57 | 13.47/19.63 | 21.54/31.17 |
Theoretical clamping(30kg/cm²) | 71 | 147 | 259 | 404 | 647 |
Fluid | filtered oil | ||||
Max pressure(kg/cm²) | 100 kg/cm² | ||||
Range of press | 10-70 kg/cm² | ||||
Rotating direction | turn right L or turn left R | ||||
Rotating angle | standard angle 90° order angle 0 ,45( ±2°)60( ±2°) | ||||
Acting type | double acting |
Packaging & Delivery
Packaging Details
We adopt the advanced material Expansible Polystyrene(EPS) as inner packaging , which is more securer and eco-friendly than ordinary packing . Master cartons or wooden case packing in the outside .
Port:ShenzhenLead Time :Shipped in 7 days after payment
