J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application

China J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application supplier
J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application supplier J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application supplier

Large Image :  J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: 451,452 and 40371

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 3000 pcs per week
Contact Now
Detailed Product Description
Material: Cold Roll Sheet Weight: Max.1130g
Holding Capacity: Max.450kgs Mounting Hole Diameter: 5.6-10.3mm
High Light:

latch action toggle clamp

,

lever latch toggle clamp

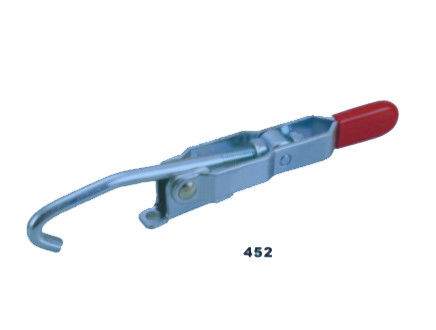

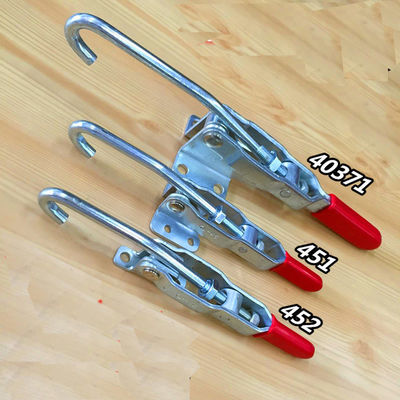

Popular Latch Type Toggle Clamp 451,452 and 40371 Max.Holding Capacity 450kgs Wide Application J hook Latch Clamp

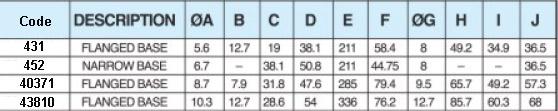

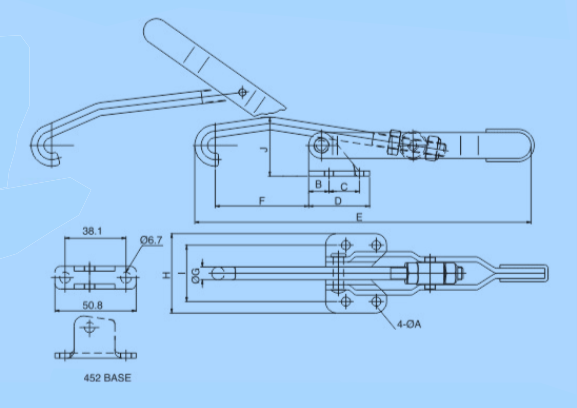

Product Specification and features:



Material :Cold Roll Sheet

Weight :Max.451:270g; 452:255g;40371:624g; 43810:1130g

Holding Capacity :451:170kg; 452:170kg;40371:340kg; 43810:450kg

Mounting Hole diameter :5.6-10.3mm



Note:



1.Stainless steel version is available for above all size toggle clamps

2.Ideal for use on doors, machinery, automobiles, jig assemblies and other medium to heavy-duty job applications
3.Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance
4.Features hook shaped clamp rod for clamping any custom latch point
5.Complete with adjustable j hook
6.Mechanism allows maximum clearance





J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application



J Hook Latch Type Clamp 451 452 40371 Max Holding Capacity 450kgs Wide Application
