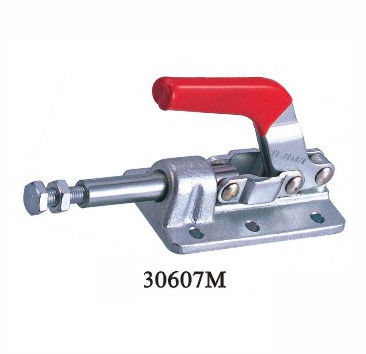

318kgs Push Pull Toggle Clamp 30607 30608 Forged Alloy Steel Base Destaco 607

Large Image : 318kgs Push Pull Toggle Clamp 30607 30608 Forged Alloy Steel Base Destaco 607

Product Details:

Place of Origin:	Dongguan China
Brand Name:	Jiayan
Certification:	ISO9001:2008

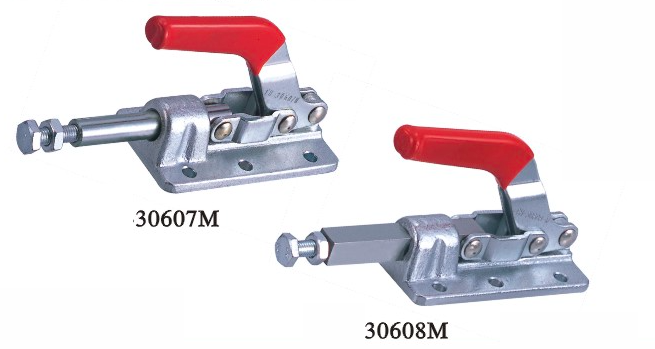

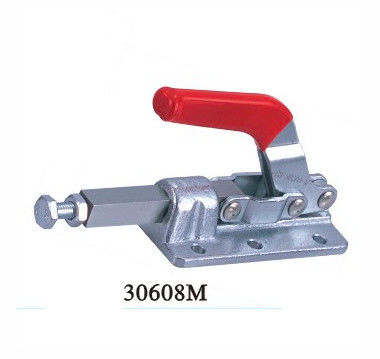

Model Number:	30607 and 30608

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	poly bag and carton box
Delivery Time:	7 days
Payment Terms:	L/C, T/T, Western Union,PayPal
Supply Ability:	2000 pcs per week

Contact Now

Detailed Product Description

Material:	Forged Alloy Steel Base	Weight:	700g
Holding Force:	318kgs	Handle Opens:	180 Degree
Plunger Stroke:	41.3mm	Surface Treatment:	Zinc-plated
High Light:	push pull action toggle clamps , woodworking toggle clamps

Forged Alloy Steel Base Push Pull 30607 and 30608 Holding Force 318kgs Destaco 607 for metal processing

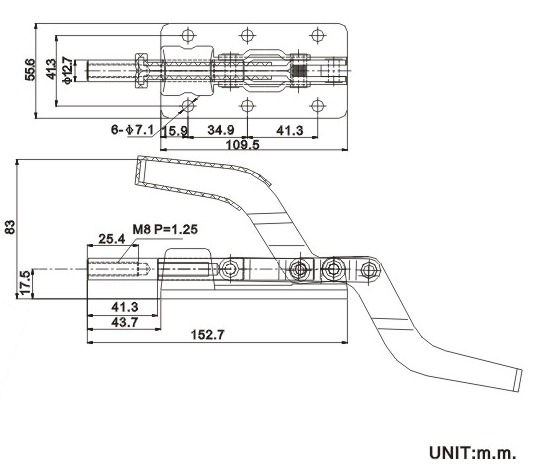

Product Specification and features:

Material:Forged Alloy Steel Base

Weight :700g

Holding Force :318kgs

Handle Opens :180 degree

Plunger Stroke :41.3mm

Surface Treatment :Zinc-plated

straight line action clamp with flange base mounting
700lbs Hold Capacity,1.54 lbs weight,1.62" plunger stroke
Complete with adjustable rubber pressure tips
Material : Metal, Plastic; Package : 1 x Toggle Clamp
cross reference destaco 607

318kgs Push Pull Toggle Clamp 30607 30608 Forged Alloy Steel Base Destaco 607
