Stainless Toggle Clamp 22025 Electronic Products Test Jig Nylon Clamping Head

China Stainless Toggle Clamp 22025 Electronic Products Test Jig Nylon Clamping Head supplier

Large Image :  Stainless Toggle Clamp 22025 Electronic Products Test Jig Nylon Clamping Head

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: 22005

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Poly bag and carton box
Delivery Time: 7 days
Payment Terms: T/T, L/C, Western Union,PayPal
Supply Ability: 4000 pcs per week
Contact Now
Detailed Product Description
Material: Cold Roll Sheet Weight: 25g
Holding Capacity: 22.7kgs Bar Opens: 90 Degree
Handle Opens: 60 Degree Surface Finish: Zinc-plated
High Light:

horizontal handle toggle clamp

,

straight line toggle clamp

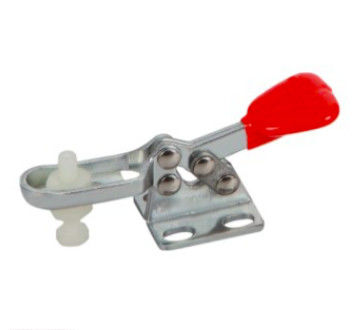

Electronic Products Test Jig Horizontal Toggle Clamp 22025 Holding Force 22.7kgs Nylon Clamping Head



Product Specification and features:



Material :Cold Roll Sheet

Weight :25g

Holding Capacity:22.7kgs

Bar Opens:90 degree

Handle Opens:60 degree

Surface Finish:Zinc-plated

Clamping Spindle: Nylon



Application: Electronic Product test jig and PCB check fixture



Stainless Toggle Clamp 22025 Electronic Products Test Jig Nylon Clamping Head

Stainless Toggle Clamp 22025 Electronic Products Test Jig Nylon Clamping Head





Tag:

horizontal handle toggle clamp,

straight line toggle clamp
