Material: | Cold Roll Sheet | Weight: | 400g |
---|---|---|---|
Holding Capacity: | 100kg | Bar Opens: | 185 Degree |
Handle Opens: | 60 Degree | Warranty: | 1 Year |
High Light: | horizontal handle toggle clamp,destaco toggle clamp |

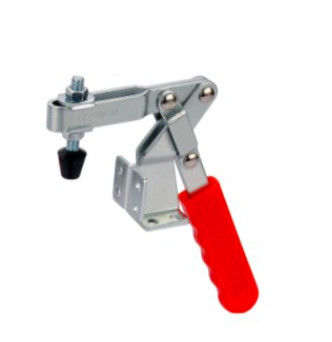

100kgs Holding Force Horizontal QuicK Release Toggle Clamp 20820 Horizontal or Vertical Mounting Base 317-U
Product Specification and features:
Material :Cold Roll Sheet
Weight :400g
Holding Capacity:100kg
Bar Opens:185 degree
Handle Opens:60 degree
Sheet metal steel
Zinc plated
Red vinyl hand grip
Neoprene tipped spindle assembly
BASE TYPE: Horizontal/Vertical
STYLE: Horizontal
TYPE: Standard
Application:
1.Install on jigs, tool fixtures, or movable bases
2.Complete with adjustable rubber pressure tips
