Structure: | Air Cylinder And Weldable Clamp | Weight: | 3015g |
---|---|---|---|
Port Size: | G1/8'' | Bore Of Cylinder: | 40mm |
Cylinder Area: | 12.56cm2 | Max Air Pressure: | 10kg/cm2 |
Max Holding Force: | 500kgs | Warranty: | 1 Year |
High Light: | air powered toggle clamps,pneumatic hold down clamps |

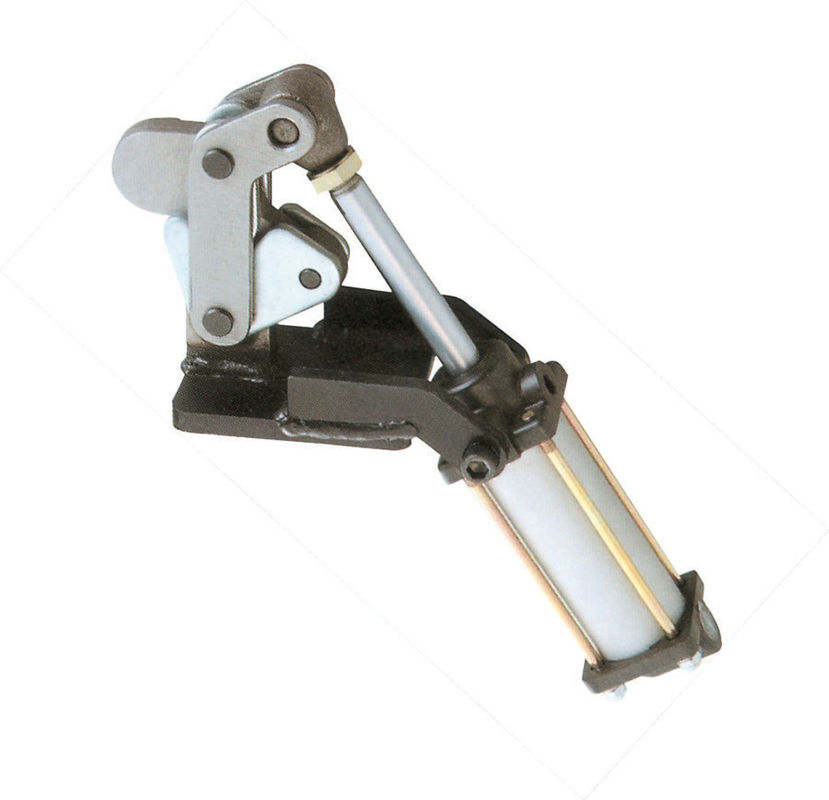

Heavy Duty Pneumatic Toggle Clamp 702DA Holding Force 500kgs Customized Welding Clamping Arm and Handle
Product Specification and features:
Structure :Air cylinder and weldable clamp
Weight :3015g
Port Size:G1/8''
Bore of Cylinder:40mm
Cylinder Area:12.56cm2
Max air pressure:10kg/cm2
Max Holding Force:500kgs
1.The wedable air clamps open widely for easy loading and unloading of workpiece
2.The user supplies need to weld hold down clamping arm and suitable handle to the clamps.
Series Products: 702-CA, 702-DA and 702-KA
