Structure: | Air Cylinder And Toggle Clamp | Weight: | 2570g |
---|---|---|---|
Port Size: | G1/8'' | Plunger Stroke: | 30mm |
Bore Of Cylinder: | 40mm | Cylinder Area: | 12.56cm2 |
Max AIR PRESSURE: | 10 KG/CM2 | Holding Force: | 1136kgs |
High Light: | air powered toggle clamps,pneumatic hold down clamps |

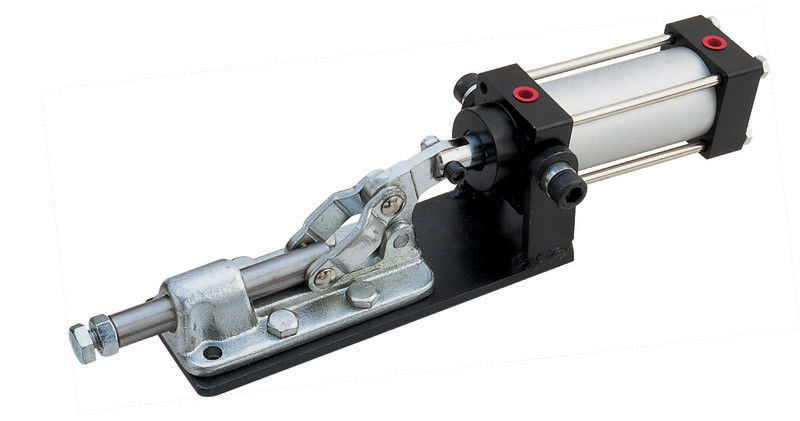

Air Powered Toggle Clamp 36330A Clamping Force 1136kgs Machining Center Fixture
Product Specification and features:
Structure :Air cylinder and toggle clamp
Weight :2570g
Port Size:G1/8''
Plunger Stroke:30mm
Bore of Cylinder:40mm
Cylinder Area:12.56cm2
Max AIR PRESSURE:10 KG/CM2
Holding Force :1136kgs
The 15.6mm diameter plunger travels forward 31.8mm form and opem to a closed and locked position.
Plunger is drilled and tapped to accept a M10 p=1.5 spindle or to receive your customized fixture.
