Product Details:
Payment & Shipping Terms:
|
| Material: | Cold Rolled Steel | WEIGHT: | 115g |
|---|---|---|---|
| HOLDING CAPACITY: | 100kg | SPINDLE SUPPLIED: | M6x45 |
| BAR OPENS: | 90 Degree | HANDLE OPENS: | 65 Degree |
| High Light: | vertical handle toggle clamp,vertical hold down toggle clamp |
||

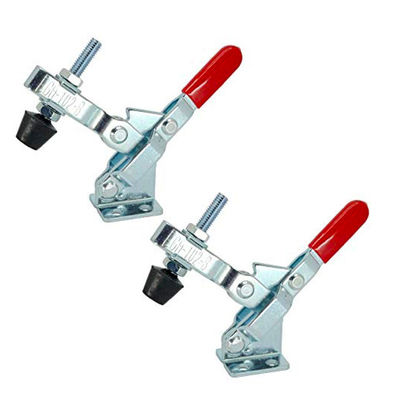

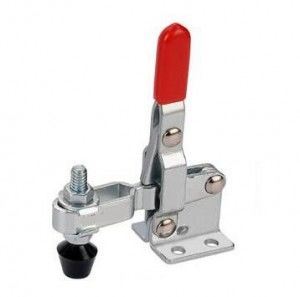

Vertical Toggle Clamp 102 - B Cold Rolled Steel Tool Fixture Stable Structure Oil and Stain Resistant Vinyl Handle
Product Specification:
1.Holding Capacity: 220 lbs /100kg, solid grip; Handle Opening Angle: 65°; Bar Opening Angle: 90°; Complete with adjustable rubber pressure tips.
2.Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance.
3.Clamping Base Dimension: 1-1/8" x 1-1/16"; Clamping Screw Thread Size: M6 x 45mm/0.24" x 1.77"(D*L); Bolt length (including rubber feet): 2". Mount Hole Distance: 18 x 15mm/0.7" x 0.6"(L*W); Mounting slot measures: 3/16" DIA; Clamping range extends from 1/2" - 1-1/2"; Total Clamp length (including handle) during use: 2-3/4"; Overall Size: 70 x 28 x 103mm/2.8" x 1.1" x 4"(L*W*H)
4.Essential for use with jigs, fixtures, assemblies and portable bases.Vertical clamping action holds stock in a stable horizontal position.
