Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Max. Operating Pressure: | 140 Kgf/cm2 |
|---|---|---|---|
| Min. Operating Pressure: | 10 Kgf/cm2 | Bore Of Cylinder: | 40-250mm |
| Range Of Temperature(°C ): | -10 ~ +70 (°C ) | Mix. Cushion Stroke(mm): | 50-100 Mm |
| Warranty: | 1 Year | ||
| High Light: | double rod end hydraulic cylinder,light duty hydraulic cylinders |
||

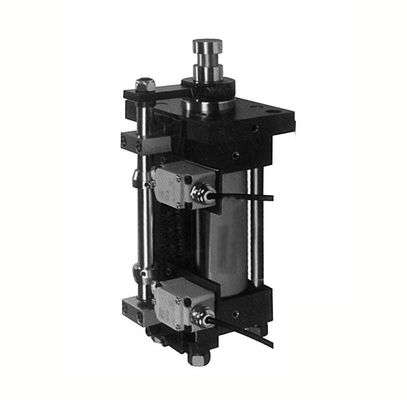

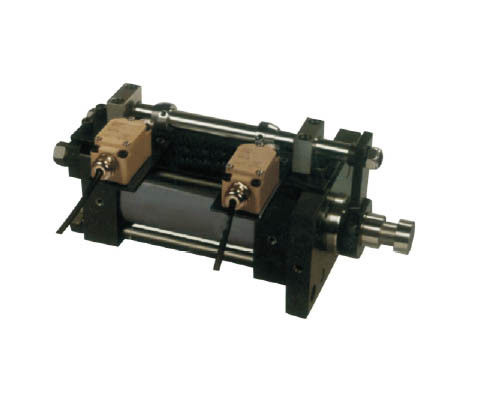

Column Type Hydraulic Cylinder Stroke Controllable Die Building Cylinder
Features:
1. CHK column-type hydraulic cylinder is a medium and high pressure cylinder which has wide application. It is especially applicable in the field of die-casting mould manufacture.
2. Guiding system is added to the CHK column-type hydraulic cylinder to control the stroke adequately during operating.
3. Buffer device is added to CHK column-type hydraulic cylinder to prolong service life of the cylinder and slide block.
4. Max. operating pressure: 140 kgf/cm2
Min. operating pressure: 10 kgf/cm2
NOTE
Orders with customized request are available, welcome to contact us.
Ordering Code:
CHK - FA - 80 X 100 A + S2
1 2 3 4 5 6
| 1 |
Series |
CHK |
| 2 |
Fixing type |
FA : Front Flange |
| 3 | Bores of Cylinder |
Φ40, Φ50, Φ63 , Φ80 , Φ100 , Φ125 , Φ150, Φ180, Φ200, Φ220, Φ250. |
| 4 |
Stroke |
as customer's request |
| 5 |
Piston connection type |
as customer's request |
| 6 |
travel switch |
S1 of 1 pc, S2 of 2 pcs |
| Bore of Cylinder (mm) | Φ40 Φ50 Φ63 Φ80 Φ100 Φ125 Φ150 Φ180 Φ200 Φ220 Φ250 |
|
Material of cylinder |
Carbon steel STKM-13C |
|
Mix. Cushion stroke(mm) |
50 50 50 50 80 80 80 100 100 100 100 |
|
Range of temperature(°C ) |
-10 ~ +70 (°C ) |
