Product Details:
Payment & Shipping Terms:
|
Material: | Carbon Steel Or Stainless Steel | Max Work Pressure: | 21kg/cm2) |
---|---|---|---|
Min. Work Pressure: | (3kg/cm2 | Speed (mm/sec): | 8~300(mm/sec) |
Range Of Temperature(°C ): | -10 ~ + 60 (°C ) | Warranty: | 1 Year |
High Light: | light duty hydraulic cylinders,heavy duty linear actuator |

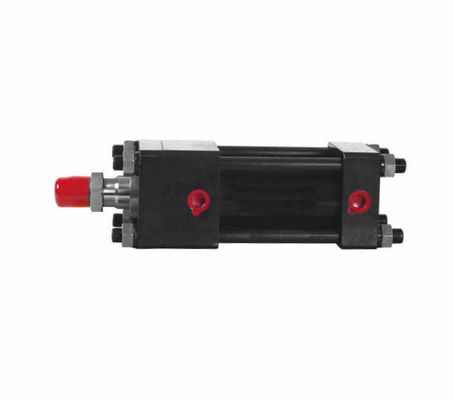

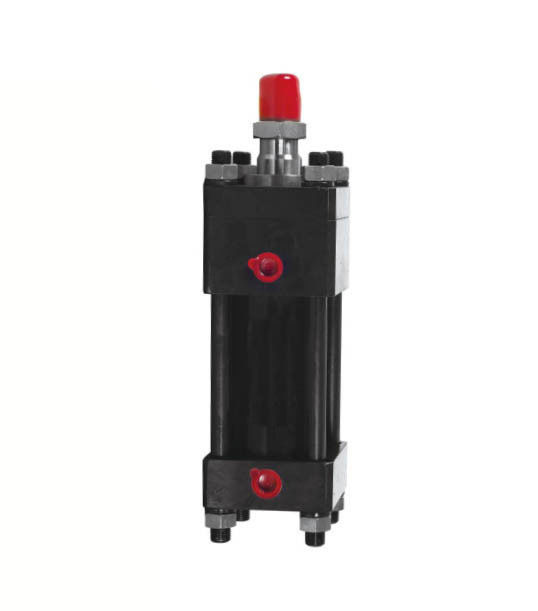

21 mpa Tie-rod Hydraulic Cylinder High Pressure Heavy Duty Oil Cylinder for Large Machinery
Feature:
1. Adopt high performance oil seal to prevent leakage , long life service.
2. Cylinder cover Carbon steel , chrome-plated piston rod , strong and durable ctructure.
3. Multiple mounting types , which can be customized by clients' requirements.
4. Cylinder Body: Carbon steel or stainless steel
5. High Clamping force
MO | Part name | QTY | NO | Part name | QTY | NO | Part name | QTY |
1 | Piston rod | 1 | 10 | Cylinder tube | 1 | 19 | Adjustable nut |
1
|
2 | Locking nut | 1 | 11 | Cushion collar | 1 | 20,21 | O Gasket | 2 |
3 | Dustproof seal | 1 | 12 | O Gasket | 1 | 22 | Hexagon nut | 1 |
4 | Oil seal for shaft | 1 | 13 | Wearing ring | 1 | 23 |
Adjustable lead screw1 |
1 |
5 | Gland | 1 | 14 | Piston seal | 2 | 24 | Pulled rod | 4 |
6 | Guide sleeve | 1 | 15 | Piston | 1 | 25 | Half snap ring | 2 |
7 | O Gasket | 1 | 16 | End cover | 1 | 26 | Baffle ring |
1 |
8 | Rod cover | 1 | 17 | Nut | 8 | 27 | Rod baffle ring | 1 |
9 | O Gasket | 2 | 18 | Spring washer | 8 | 28 | Adjustable nut | 1 |
Specification:
Bores of Cylinder |
Φ40
|
Φ50
|
Φ63
|
Φ80
|
Φ100
|
Φ125 | ||
Power Fluid | Filtered Oil | |||||||
Material of cylinder bareel | Carbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5 | |||||||
range of pressure(mpa) | 0.3-7.0 MPA(3-70kg/Cm2) | |||||||
speed (mm/sec) | 8~300(mm/sec) | |||||||
temperature(°C ) | -10 ~ + 60 (°C ) | |||||||
Cushion stroke)mm | 25 | 25 | 25 | 25 | 30 | 30 | ||
Length of standard piston(PM) | 30 | 32 | 36 | 40 | 59 | 59 | ||
Piston length when the stroke is between 1501-2500 mm | 60 | 65 | 65 | 80 | 120 | 120 |
Ordering Code :
CGOB D - 63 / 35 * 100 LB + Y
1 . 2 . 3 . 4 5 6 . 7
1 | Series | |
2 | Flxed Cushioning Type | Blank: No cushion D: cushions on both ends F: cushion on head cover B: cushion on end cover |
3 | Bore of Cylinder |
Φ40, Φ50, Φ63, Φ80, Φ100, Φ125, Φ140, Φ150, Φ160 |
4 | Rod |
|
5 | Stroke |
Steel barrel(Φ30-Φ125) Max:4m Iron barrel(Φ40-Φ100) Max:2.8m |
6 | Cylinder Body Accessories | |
7 | Rod Accessories |
Remark : The sizes of the heavy duty hydraulic cylinder can be customized as customers' requirement.
Pls contact us your requested cylinders
