Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Max. Operating Pressure: | 300 Kgf/cm2 |
|---|---|---|---|
| Min. Operating Pressure: | 100 Kgf/cm2 | Acting Type: | Single Acting And Double Acting |
| Mounting Type: | Axial Bolt Mounting Or Side Mounting | Warranty: | 1 Year (change New One For Free) |
| High Light: | double rod end hydraulic cylinder,heavy duty linear actuator |
||

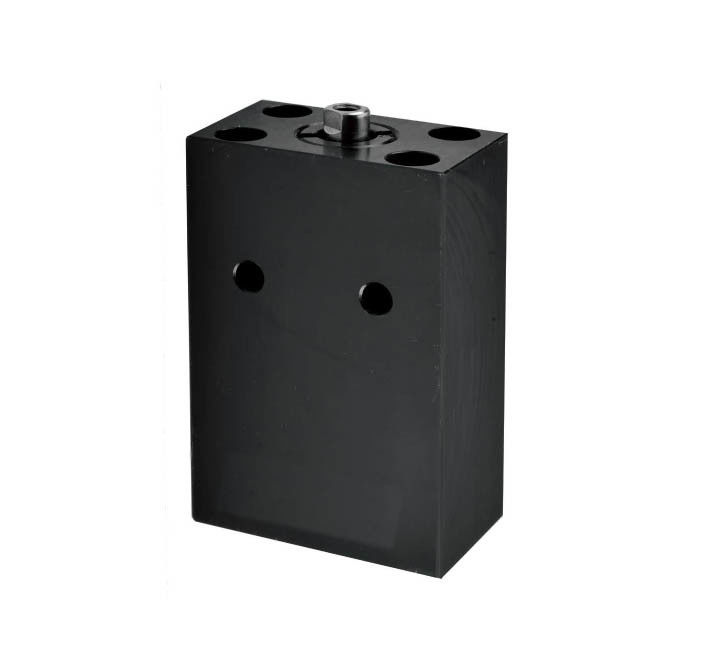

Block Push Pull Hydraulic Cylinder Double Acting Cylinder High Pressure Withstanding Performance
FEATURES
1.This series of hydraulic cylinder complies with Germany specifications.
2.Employ imported oil seal for outstanding pressure withstanding.
3.Standardized specification and can be used on many different machines and machining
center.
4. Mounting Type: axial and side mounting.
5.Single and double acting are available.
6.Max. operating pressure: 300 kgf/cm2
Min. operating pressure: 100 kgf/cm2
If the operation pressure is over 300 kgf/cm2 , the cylinders are needed to customized.
Ordering Code
HBC- 32 S 20
1 2 3 4
| 1 |
Series |
HBC |
| 2 | Bore of Cylinder |
Φ16,Φ25,Φ32,Φ40 |
| 3 |
Acting type |
S Single-acting D Double-acting |
| 4 |
Standard stroke |
Refer to the dimension table |
Cylinder Clamping Force :
OPERATION PRESSURE(kgf/cm2)
Bores of Cylinder Diameter of Piston Pressure Area (cm2) and Clamping force
