Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder

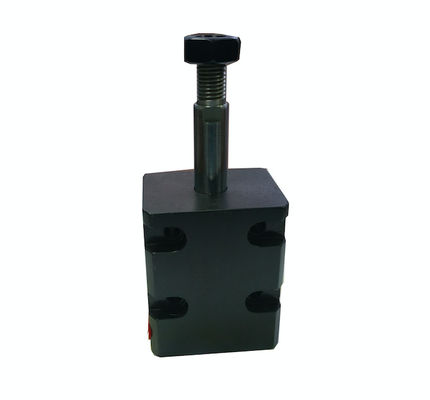

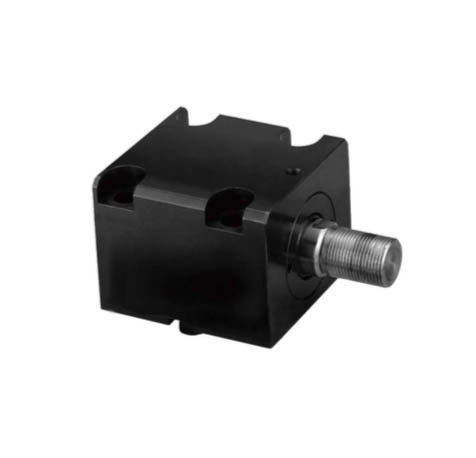

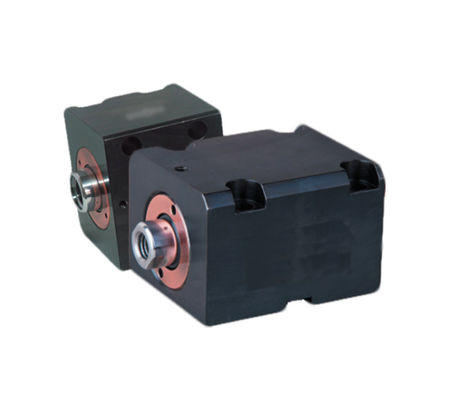

Large Image : Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder

Product Details:

Place of Origin:	Dongguan China
Brand Name:	Jiayan
Certification:	ISO9001:2008
Model Number:	LAM/LWM

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	poly bag and carton box
Delivery Time:	7 days
Payment Terms:	L/C, T/T, Western PayPal
Supply Ability:	400 sets per week

Contact Now

Detailed Product Description

Material:	Carbon Steel	Mounting Type:	Lateral Manifold Mounting
Max.Operation Pressure:	140kg/cm2	Flow Speed:	8-100mm/sec
Work Temperature:	-10~+60°C	Warranty:	1 Year (change New One For Free )
High Light:	double rod end hydraulic cylinder , heavy duty linear actuator

Lateral Manifold Double Or Single End Rod Type Push Pull Hydraulic Cylinder Carbon Steel Oil Pressure Cylinder

Ordering Code

CHTB - LAM 32×20 N

1 2 3 4 5

1	Series	CHTB
2	Mounting type	LAM:Lateral manifold single end rod type LWM:Lateral manifold double end rod type
3	Bore of Cylinder	Φ32 , Φ40 , Φ50 , Φ63
4	Standard stroke	Please refer to the <stroke specification>
5	Rod end type	N: Female thread N W:Male thread W

Hydraulic Cylinder Stroke Specifications

Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder

Pressure

Bores of Cylinde Dia.of Piston Area (cm2) OPERATION PRESSURE(kgf/cm2) Temperature

Lateral Manifold Push Pull Hydraulic Cylinder / Single Acting Hydraulic Cylinder

CHTB Hydraulic Cylinder Lateral manifold single or double end rod type LAM/LWM
