Structure: | Air Cylinder And Toggle Clamp | Weight: | 1540g |
---|---|---|---|
Plunger Stroke: | 23.6mm | Port Size: | G1/8'' |
Bore Of Cylinder: | 30cm | Cylinder Area: | 12.56cm2 |
Max Air Pressure: | 10kg/cm2 | Max Holding Capacity: | 386kgs |
High Light: | air powered toggle clamps,pneumatic hold down clamps |

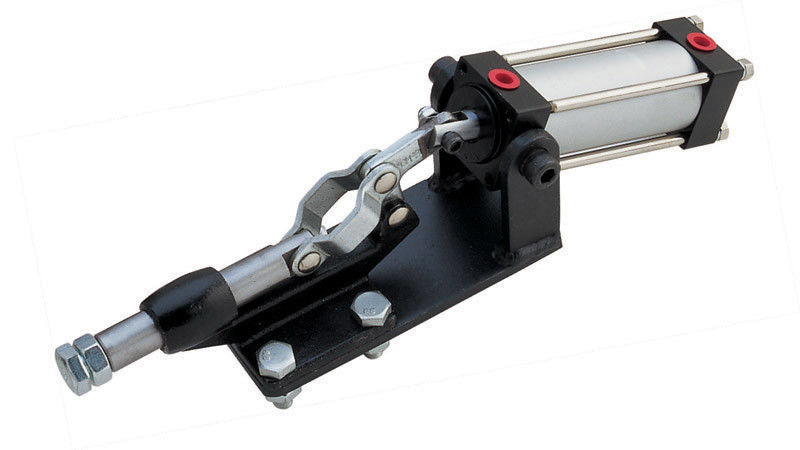

Air Powered Toggle Clamp 305EA Holding Force 386kgs Stroke 23.6mm Machinery Manufacture Fixture
Product Specification and features:
Structure:air cylinder and toggle clamp
Weight:1540g
Plunger Stroke:23.6mm
Port Size:G1/8''
Bore of cylinder:30cm
Cylinder area:12.56cm2
Max air pressure :10kg/cm2
Max Holding Capacity:386kgs
The 15.6 mm diameter plunger travels forward 254mm
form and open to a closed and positive locked position even
if air pressure fails. Plunger accepts any M10P=1.5 spindle
or to receive your customized fixture.
