Structure: | Air Cylinder And Toggle Clamp | Weight: | 960g |
---|---|---|---|
Plunger Stroke: | 19.7mm | Port Size: | G1/8'' |
Bore Of Cylinder: | 30mm | Cylinder Area: | 7.07cm2 |
Air Pressure: | 10kg/cm2 | Max Holding Force: | 272kgs |
High Light: | air powered toggle clamps,pneumatic hold down clamps |

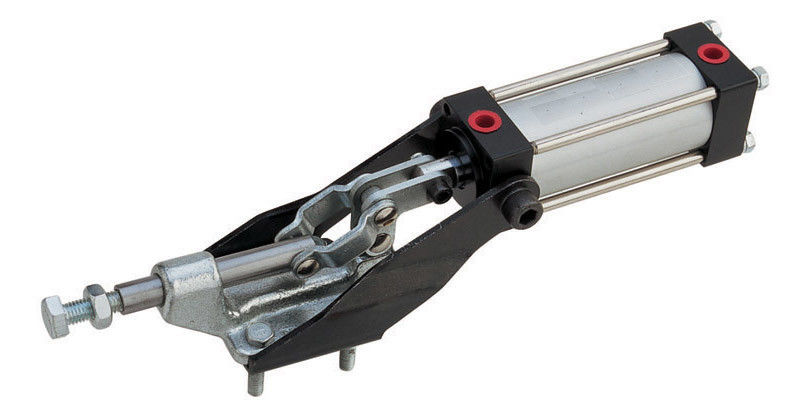

Pneumatic Push Pull Toggle Clamp 36003A Holding Force 272kgs Sturdy Structure Fixture
Product Specification and features:
Structure:Air Cylinder and toggle clamp
Weight:960g
Plunger Stroke:9.7mm
Port Size :G1/8''
Bore of Cylinder:7.07cm2
Cylinder Area:7.07cm2
Air Pressure:10kg/cm2
Max Holding Force:272kgs

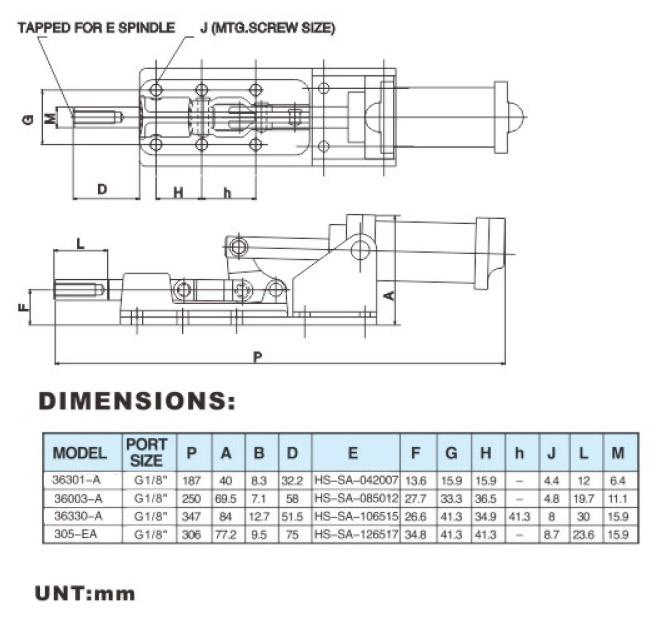

The 11.1 mm diameter plunger extends 19.05 mm to a locked position.
The end of the plunger is drlled and tapped for a M8*P1.25 spindle .
