Structure: | Air Cylinder And Toggle Clamp | Weight: | 1000g |
---|---|---|---|
Clamping Force: | 100kgs | Bar Opens: | 80 Degree |
Bore Of Cylinder: | 32mm | Cylinder Area: | 7.07cm2 |
Max Air Pressure: | 10kg/cm2 | ||
High Light: | air powered toggle clamps,pneumatic hold down clamps |

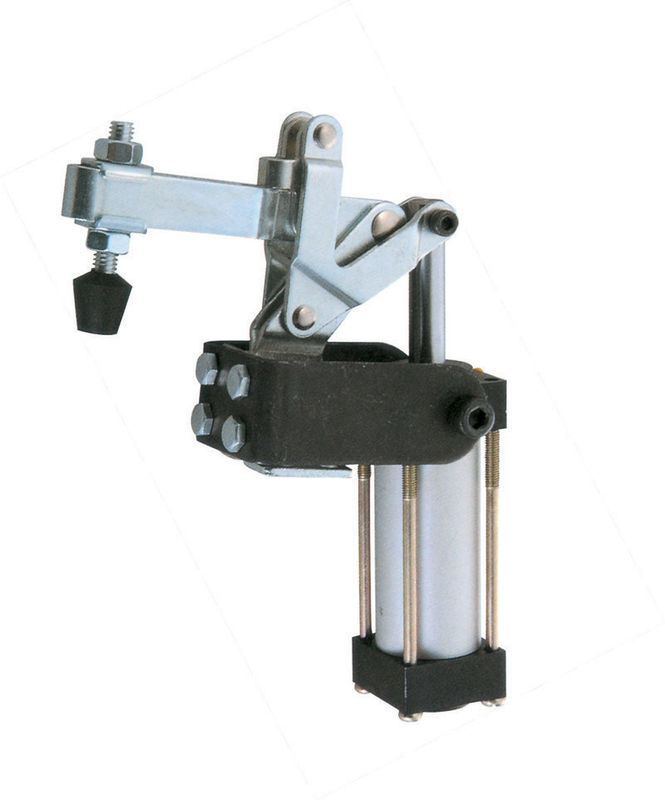

Pneumatic Toggle Clamp 20820A Clamping Force 100kgs U Clamping Bar Adjustable Clamping Spindle
Product Specification and feature:
Structure :Air Cylinder and toggle clamp
Weight :1000g
Clamping Force:100kgs
Bar Opens:80 degree
Bore Of Cylinder :32mm
Cylinder Area:7.07cm2
Max air Pressure:10kg/cm2

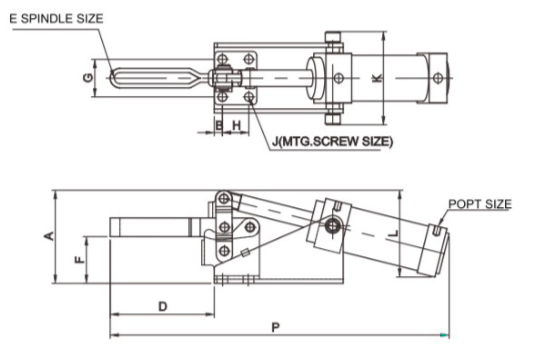

P:165 ;A:109.5;B:15D:62;E:FC-56212;F:70;G:25;H:16;J:6.7;K:67;L:195
