| Material: | Carbon Steel Or Stainless Steel | Max Work Pressure: | 140kg/cm2 |
|---|---|---|---|
| Min Work Pressure: | 3kg/cm2 | Speed (mm/sec): | 8~300(mm/sec) |
| Temperature(°C ): | -10 ~ + 60 (°C ) | Warranty: | 1 Year |
| High Light: | double rod end hydraulic cylinder,light duty hydraulic cylinders |
||

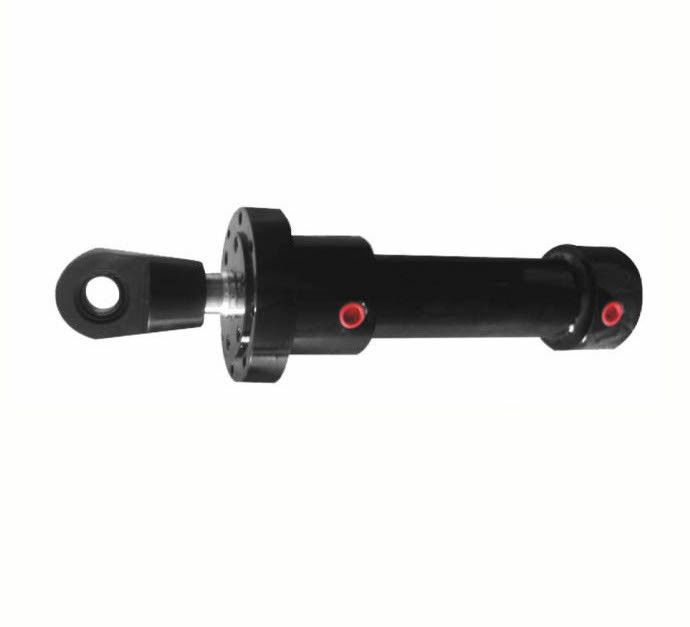

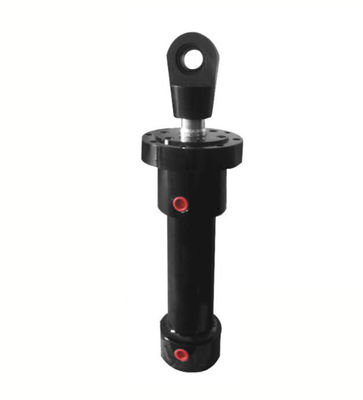

CRO Series 14Mpa Round Hydraulic Cylinder Push Pull Linear Hydraulic Motor Carbon Steel
Feature:
1. Employ high quality oil seal to prevent leakage , long pressure maintaning time and life span.
2. Carbon steel or stainless steel are available for the cylinder body , strong and durable structure.
3. Multiple mounting types to clients' requirements.
4. Special hydraulic cylinder can be customized by clients' applications
| NO | Part name | QTY | NO | Part name | QTY | NO | Part name | QTY |
| 1 | Piston rod | 1 | 10 |
Spring washer |
2 | 18 | Half snap ring |
2
|
| 2 | Dustproof seal | 1 | 11 |
Nut |
1 | 19 | Copper piston | 1 |
| 3 | Oil seal for shaft | 1 | 12 |
Rod nut |
1 | 20 | Magnet ring | 1 |
| 4 |
Guidance tape |
1 | 13 |
Rod cover |
1 | 21 | O Gasket | 1 |
| 5 |
Gasket |
1 | 14 |
Lock Nut |
1 | 22 |
Baffle Ring |
1 |
| 6 |
Gasket |
1 | 15 |
Cylinder tube |
1 | 23 |
Washer On Shaft |
1 |
| 7 |
Gasket |
1 | 16 |
Piston |
1 | 24 |
Lock Nut |
1 |
| 8 |
Piston seal |
2 | 17 |
End cover |
1 | 25 |
Adjustable Nut |
1 |
| 9 |
Wearing ring |
1 |
Specification:
|
Bore of cylinder (mm)
|
Φ40
|
Φ50
|
Φ63
|
Φ80
|
Φ100
|
Φ125
|
|
|
| Power Fluid | Filtered Oil | |||||||
| Material of cylinder | Carbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5 | |||||||
| The range of pressure(mpa) | 0.3-7.0 MPA(3-70kg/Cm2) | |||||||
| The range of speed (mm/sec) | 8~300(mm/sec) | |||||||
| Range of temperature (°C ) | -10 ~ + 60 (°C ) | |||||||
| Length of standard piston (PM) | 30 | 35 | 35 | 50 | 60 | 70 | ||
| Piston length when the stroke is between 1501-2500 mm | 60 | 70 | 70 | 100 |
100
|
120
|
|
|
|
Piston length when the stroke is between 2501-4000 mm |
90 | 100 | 100 | 150 | 180 | 200 | ||
Ordering Code
CROB R D - 63 / 35 * 100 LB + Y
1 2 3 4 5 6 7 8
| 1 | Series |  |
| 2 | Magnetic |
Blank: No magnet Z:Magnet |
| 3 | Flxed Cushioning Type | Blank: No cushion D: cushions on both ends F: cushion on head cover B: cushion on end cover |
| 4 | Bore of Cylinder | Φ40 ,Φ50 ,Φ63 ,Φ80 ,Φ100,Φ125 |
| 5 | Rod |
Standard Φ20 Φ25 Φ35 Φ40 Φ50 Φ60 Max Φ25 Φ30 Φ40 Φ50 Φ70 Φ80 |
| 6 | Stroke |
Steel barrel(Φ30-Φ125) Max:4m Iron barrel(Φ40-Φ100) Max:2.8m |
| 7 | Cylinder Body Accessories |  |
| 8 | Rod Accessories |  |
Remark : The sizes of the hydraulic cylinder can be customised by customer's requirements.
