Material: | 45 Steel | Max. Bore: | 125mm |
---|---|---|---|
Max. Operation Pressure: | 70kg/cm2 | Speed: | 8~300(mm/sec) |
Range Of Temperature(°C ): | -10 ~ + 60 (°C ) | Warranty: | 1 Year (change New For Free) |
High Light: | double rod end hydraulic cylinder,light duty hydraulic cylinders |

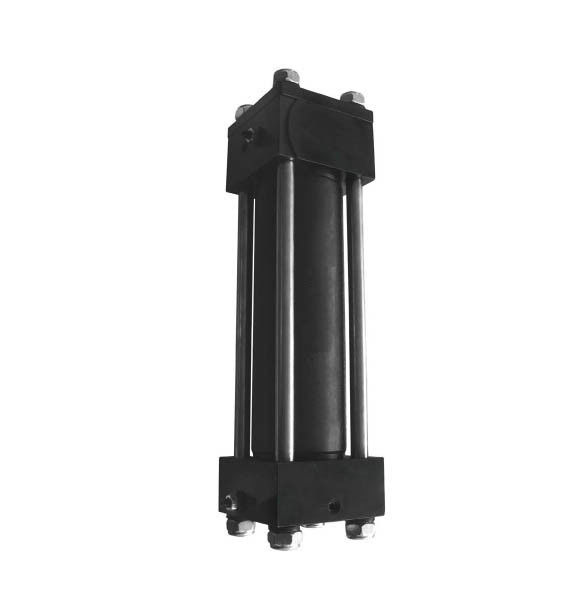

Light Duty Hydraulic Cylinder Carbon Steel Cylinder Body High Performance Oil Seal
Feature:
1. Adopt high performance oil seal to prevent leakage , long life span.
2. Cylinder cover 45# steel , chrome-plated piston rod , strong and durable ctructure.
3. Multiple mounting types , which can be customized by clients' requirements.
4. Special hydraulic cylinder can be customized by clients' applications.
MO |
Part name |
QTY |
NO |
Part name |
QTY |
NO |
Part name |
QTY |
1 |
Piston rod |
1 | 8 |
Rod nut |
1 | 15 |
Half snap ring |
2
|
2 |
Dustproof seal |
1 |
9 |
Rod cover |
1 |
16 |
Copper piston |
1 |
3 |
Oil seal for shaft |
1 |
10 |
Cylinder tube |
1 |
17 |
Magnet ring |
1 |
4 |
O Gasket |
2 |
11 |
pull rod |
4 |
18 |
O Gasket |
2 |
5 |
Piston seal |
2 |
13 |
Piston |
1 |
20 |
Washer on shaft |
1 |
6 |
Spring washer |
1 |
13 |
Piston |
1 |
20 |
Washer on shaft |
1 |
7 |
Nut |
1 |
14 |
End cover |
1 |
21 |
Adjustable nut |
1 |
Specification:
Bore of cylinder (mm)
|
Φ30
|
Φ40
|
Φ50
|
Φ63
|
Φ80
|
Φ100
|
Φ125
|
|
Power Fluid |
Filtered Oil |
|||||||
Material of cylinder |
Carbon steel STKM-13c/ tainless tubes SUS 304/AL Tube A6063TDS-T5 |
|||||||
The range of pressure(mpa) |
0.3-7.0 MPA(3-70kg/Cm2) |
|||||||
The range of speed (mm/sec) |
8~300(mm/sec) |
|||||||
Range of temperature (°C ) |
-10 ~ + 60 (°C ) |
|||||||
Length of standard piston (PM) |
30 | 30 | 30 | 30 | 35 | 50 | 50 | |
Piston length when the stroke is between 1501-2500 mm |
60 | 60 | 60 | 60 |
70
|
100
|
100
|
Odering Code:
MOB Z D - 63 / 25 *100 LB + Y
1 2 3 4 5 6 7 8
1 |
Series |
MOB: Standard type MOD:Double Rods type |
2 |
Magnetic |
Blank: No magnet Z:Magnet |
3 |
Flxed Cushioning Type |
Blank: No cushion D: cushions on both ends |
4 | Bore of Cylinder | Φ30 ,Φ40 ,Φ50 ,Φ63 ,Φ80 ,Φ100,Φ125 |
5 |
Rod |
Standard Φ16 Φ20 Φ20 Φ25 Φ30 Φ35 Max - Φ25 Φ30 Φ35 Φ40 Φ50 |
6 |
Stroke |
Steel barrel(Φ30-Φ125) Max:4m Iron barrel(Φ40-Φ100) Max:2.8m Standard stroke:50,100,150,200,250,300,350,400,450,500,600,700,800,900,1000. |
7 | Cylinder Body Accessories | |
8 | Rod Accessories |
Remark : The dimensions of the light duty hydraulic cylinder can be customized as customers' requirement.
Pls contact us your customized cylinders
