Material: | Carbon Steel | Mounting Type: | Axial End Rod Type |
---|---|---|---|
Max. Bore Of Cylinder: | 80mm | Max Standard Stroke: | 50mm |
Sensor Switch: | Available | Warranty: | 1 Year (change New One For Free) |
High Light: | light duty hydraulic cylinders,heavy duty linear actuator |

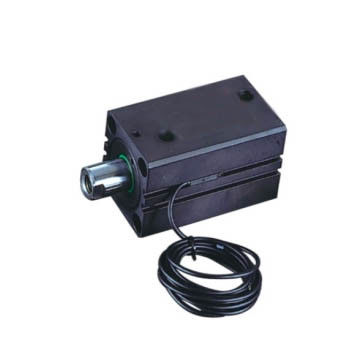

Single End Rod and Double End Rod Type Push Pull Inductive Hydraulic Cylinder With Sensor Switch
ORDERING Code
CHTM - SD 32 20 N S1
1 2 3 4 5 6
1 |
Series |
CHTM |
2 |
Mounting type
|
SD:Axial Single end rod type SW:Axial Double end rod type |
3 | Bore of Cylinder |
Φ32 , Φ40 , Φ50 , Φ63 , Φ80 |
4 |
Standard stroke |
10,20,30,40,50 |
5 |
Rod end type |
N: Female thread N W:Male thread W |
6 |
Sensor switch |
1Pcs of S1, 2Pcs of S2 Voltage DC 4-24V AC4-120V Currency 5-40mA |
CHTM Hydraulic magnetic type SD & SW.
