Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type

China Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type supplier
Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type supplier Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type supplier Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type supplier

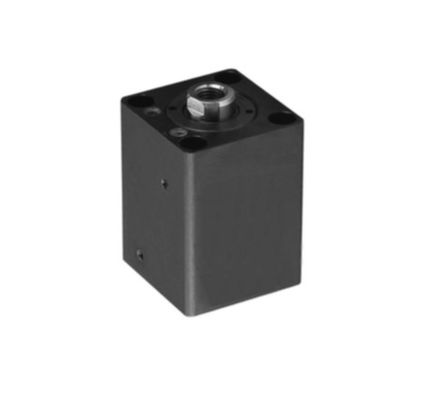

Large Image :  Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: SDMA/SDMB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, , T/T, Western Union, Paypal
Supply Ability: 300 sets per week
Contact Now
Detailed Product Description
Material: Carbon Steel Mounting Type: Axial Manifold Type
Max Operation Force: 140kg/cm2 Min. Operation Force: 5 Kg/cm2
Flow Rate: 8-100mm/sec Acting Type: Double Acting
Warranty: 1 Year (change New One For Free)
High Light:

light duty hydraulic cylinders

,

heavy duty linear actuator



Axial Front Manifold Type and Rear Manifold Type Push Pull Hydraulic Cylinder Simple Mounting Machine Cylinder



Ordering Code

CHTB - SDMA 32×20 N

1                 2      3   4   5

1 Series CHTB
2 Mounting type SDMA:Axial front manifold type
SDMB:Axial back manifold type
3 Bore of Cylinder Φ20 , Φ25 , Φ32 , Φ40 , Φ50 , Φ63 , Φ80
4 Standard stroke Please refer to the <stroke specification>
5 Rod end type

N: Female thread N W:Male thread W

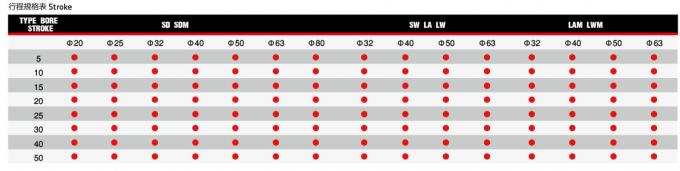

Hydraulic Cylinder Stroke Specifications

Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type

Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type

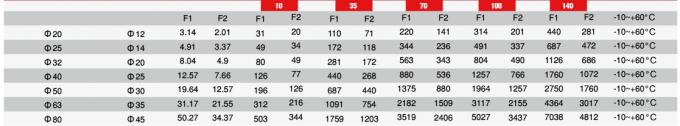

                                                   Pressure

Bores of Cylinde  Dia.of Piston   Area (cm2)                OPERATION PRESSURE(kgf/cm2)                Temperature

Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type

Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type

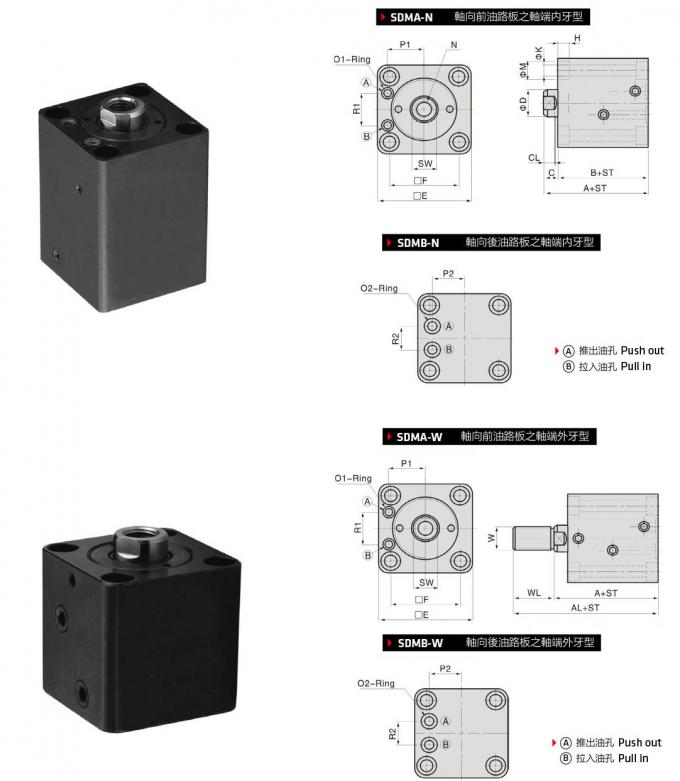

CHTB Hydraulic Cylinder Axial manifold type SDMA/SDMB

Square Push Pull Hydraulic Cylinder Axial Front Manifold Type Rear Manifold Type
