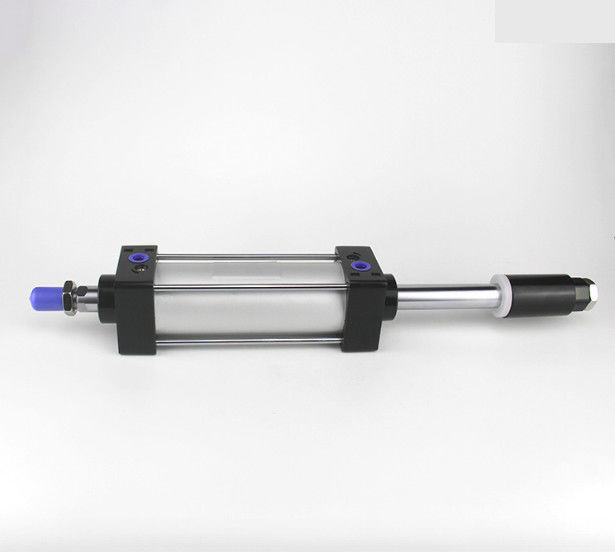

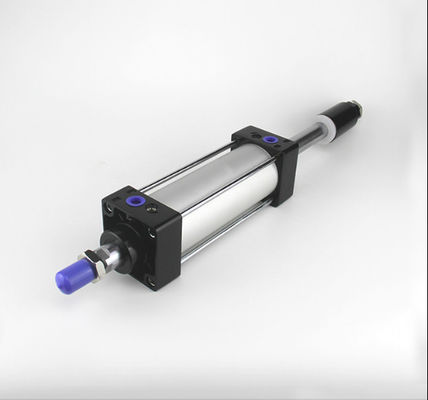

Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure

Large Image : Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure

Product Details:

Place of Origin:	Dongguan China
Brand Name:	Jiayan
Certification:	ISO9001:2008
Model Number:	DEN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	poly bag and carton box
Delivery Time:	7 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 sets per week

Contact Now

Detailed Product Description

Material:	Aluminium Alloy	Max. Operating Pressure:	1 Mpa
Min. Operating Pressure:	0.1 Mpa	Stroke:	Adjustable
Work Temperature(°C ):	-10 ~ +60 °C	Magnetic Piston:	Available
Max Stroke(mm):	500 Mm	Warranty:	1 Year (Change New One For Free)
High Light:	aluminum pneumatic cylinders , compact pneumatic cylinder

Adjustable stroke Pneumatic Cylinder with Magnet Ring on Piston Strong Structure High Precision Cylinder

Production Specifications:

Bore of Cylinder : Φ32 Φ40 Φ50 Φ63 Φ80 Φ100

Stroke(mm): 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500

Range of temperature(°C ) : -10 ~ +60 °C

Advantage:

Hign quality seal to prevent leakage , durable , high Strength aluminium alloy to prevent deformation,

Application:

Auto manufacture industry, machining center fixture , plastic machine,

automatic fixture

Air Cylinder Operation

Max. operating pressure: 10kgf/cm2

Min. operating pressure: 1 kgf/cm2

DOUBLE ACTING CYLINDERS Type Introduction

1.Double acting-single end rod type (Code: DEB)

2.Double acting-single end rod type(piston with magnet) (Code:DEB...M)

3.Double acting-double end rod type ( Code:DED)

4.Double acting-double end rod type(piston with magnet) (Code:DED...M)

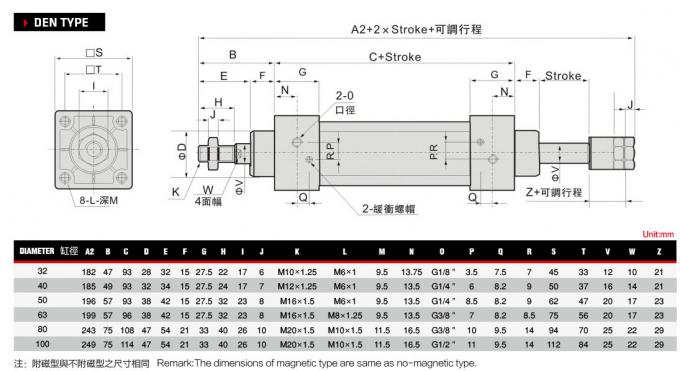

5.Adjustable stroke cylinder(adjustable stroke:A:25mm,B:50mm)
(Code: DEN...N...A ; DEN...N...B)

6.Adjustable stroke cylinder (piston with magnet) (adjustable stroke:A:25mm,B:50mm)
(DEN...M...A ; DEN...M...B)

ORDERING INDICATION

DEN - 50 N 125 B FA-Y S x 2

1 2 3 4 5 6 7 8

1	Series	DEB / DED / DEN
2	Bore of Cylinder	Φ32 ,Φ40 ,Φ50,Φ63 Φ80 , Φ100
3	Magnet	Nil: No magnet ; D: With magnet
4	Stroke	25 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 225 , 300 , 350, 400 , 450 , 500
5	Adjustable stroke	A:Adjustable 25mm ; B:Adjustable 50mm C: Adjustable 75mm

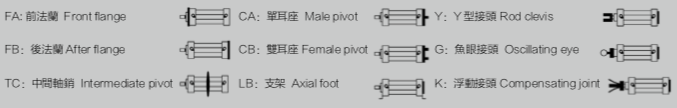

6	Accessories
7	Sensor switch
8	Quantity	1:1pcs 2:2pcs
