Material: | Aluminium Alloy | Max. Operating Pressure: | 10kgf/cm2 |
---|---|---|---|
Min. Operating Pressure: | 1 Kgf/cm2 | Bore Of Cylinder: | Φ32 Φ40 Φ50 Φ63 Φ80 Φ100 |
Max Stroke: | 500 Mm | Work Temperature: | -10 ~ +60 °C |
High Light: | aluminum pneumatic cylinders,long stroke pneumatic cylinders |

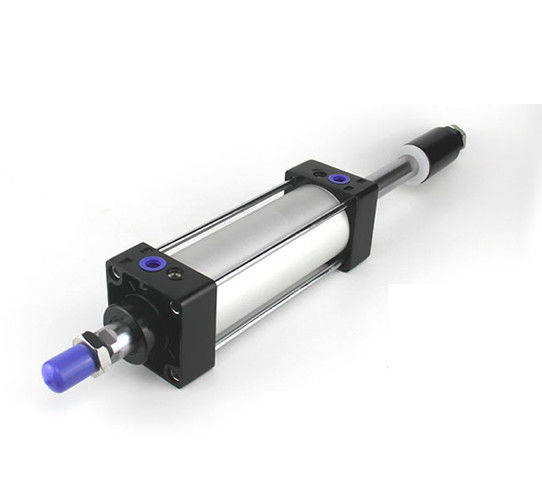

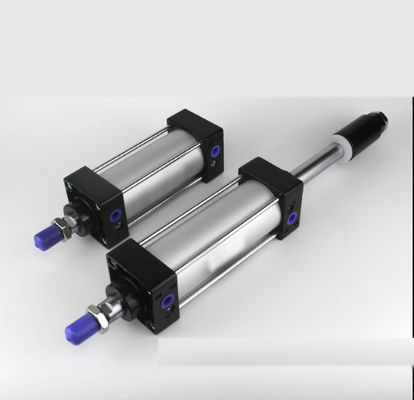

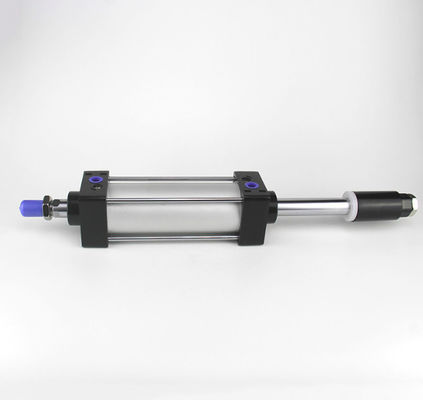

Double Acting Double End Rod Pneumatic Cylinder Automotive Welding Assembly Cylinder
Production Specifications:
Bore of Cylinder : Φ32 Φ40 Φ50 Φ63 Φ80 Φ100
Stroke(mm): 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500
Range of temperature(°C ) : -10 ~ +60 °C
Magnetic Switch is available for DED type air cylinder
Application:
Plastic machinery / conveyor systems / automatic component installation / printed circuit board / automated functional testing / complex conveyor system / tire production system / robot and automation
Air Cylinder Operation
Max. operating pressure: 10kgf/cm2
Min. operating pressure: 1 kgf/cm2
DOUBLE ACTING CYLINDERS Type Introduction
1.Double acting-single end rod type (Code: DEB)
2.Double acting-single end rod type(piston with magnet) (Code:DEB...M)
3.Double acting-double end rod type ( Code:DED)
4.Double acting-double end rod type(piston with magnet) (Code:DED...M)
5.Adjustable stroke cylinder(adjustable stroke:A:25mm,B:50mm)
(Code: DEN...N...A ; DEN...N...B)
6.Adjustable stroke cylinder (piston with magnet) (adjustable stroke:A:25mm,B:50mm)
(DEN...M...A ; DEN...M...B)
ORDERING INDICATION
DEN - 50 N 125 B FA-Y S x 2
DEN | Series | DEB / DED / DEN |
50 | Bore of Cylinder | Φ32 ,Φ40 ,Φ50,Φ63 Φ80 , Φ100 |
N | Magnet |
N: No magnet ; D: With magnet |
125 | Stroke | 25 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 225 , 300 , 350, 400 , 450 , 500 |
B | Adjustable stroke |
A:Adjustable 25mm ; B:Adjustable 50mm C: Adjustable 75mm |
FA-Y | Accessories | |
S | Sensor switch |
|
2 | Quantity | 1:1pcs 2:2pcs |
Cylinder Mounting Accessories Size
