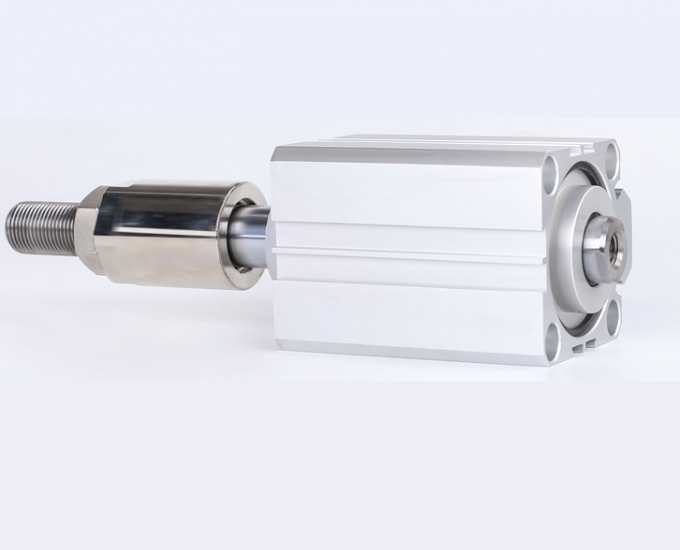

High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring

China High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring supplier
High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring supplier High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring supplier High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring supplier

Large Image :  High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: SDAJS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Max Operation Pressure: 1Mpa
Min Operation Pressure: 0.1Mpa Range Of Temperature: -10 ~ +60 °C
Max Bore Of Cylinder: Φ100 Warranty: 1 Year (change New For Free)
High Light:

aluminum pneumatic cylinders

,

compact pneumatic cylinder



High Precision Pneumatic Cylinder With Excellent Manufacture Process Perfect Inside Wear-resisting Ring

High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring



Bore of Cylinder: Φ12 ,Φ16,Φ20,Φ25, Φ32, Φ40 ,Φ50 ,Φ63 ,Φ80 ,Φ100

Stroke (mm): 5 ,10 ,15 ,20 ,25 ,30 ,35 ,40 ,45 ,50

Customized Range of stroke(mm) : Max 100

Acting Type :Double acting



Advantage:



1. Premature manufacture process

2.Imported seal and no leak with High Strenth work conditions

3.Premium aluminium alloy and surface treatment

4.Inductive Switch is avaliable

5.Can work under harsh work conditions



Application:



Automatic Machine , Machining Center , Machine Tool and automatic production line



DOUBLE ACTING CYLINDERS Types:

1.  Double acting-single end rod type  (Code: SDA)

 2. Double acting-single end rod type(piston with magnet)  (Code: SDAS)

 3. Double acting-double SDAD end rod type  (Code: SDAD)

 4. Double acting-double end rod type(piston with magnet)   (Code: SDADS)

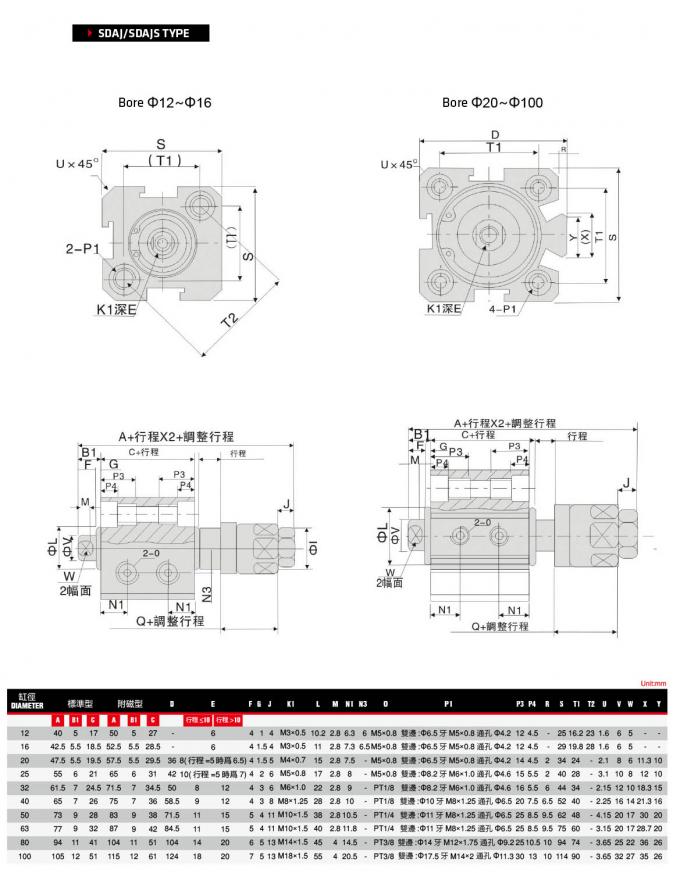

 5. Adjustable stroke cylinder(adjustable stroke:A:25mm,B:50mm)   (Code: SDAJ)

 6. Adjustable stroke cylinder (piston with magnet)(adjustable         stroke:A:25mm,B:50mm)  (Code: SDAJS)

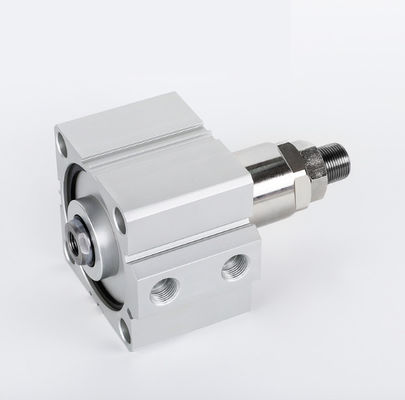

High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring

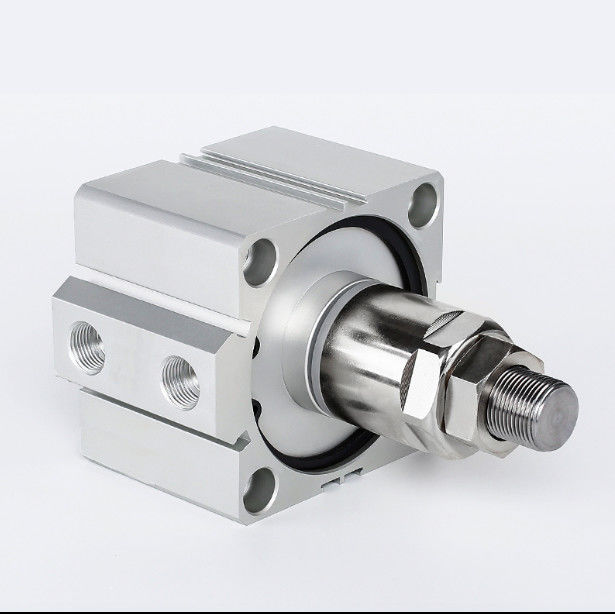

High Precision Aluminum Pneumatic Cylinders Long Life Span Wear - Resisting Ring
