Material: | High Strength Carbon Steel | Max.operating Pressure: | 70 Kgf/cm2 |
---|---|---|---|
Min.operating Pressure: | 15 Kgf/cm2 | Acting Type: | Double Acting |
Clamping Type: | Single Arm Or Double Arm | Surface Finish: | Oxidizing Blackening |
ODM: | Yes | Swing Direction: | L Or R |
High Light: | hydraulic workholding clamping fixture,rotary clamp cylinder |

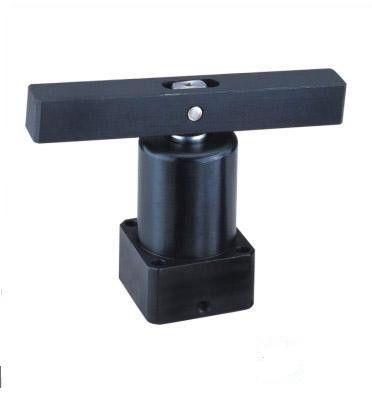

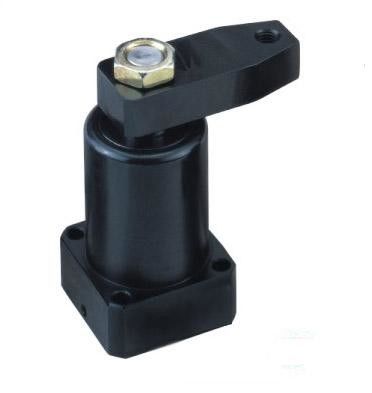

Hydraulic swing clamp made by high strength carbon steel long life-span specially for machining center
FEATURES:
1. The product is ideal for mass production on a special purpose machine and jig in machining center. It will greatly upgrade the production efficiency.
2. When the hydraulic clamp actuate, and the piston moves downward, the clamping arm will swing to a rated angle. Then it lowers until the workpiece is clamped securely.
3. To avoid too fast motion, a flow control valve is suggested to connect to the hydraulic swing clamp cylinder. Do not clamp the work piece while the clamp is swinging to avoid damaging the cylinder barrel and internal parts.
4. The cylinder body is made from structural carbon steel.Inside surface is especially treated for maximum smoothness and long service life.
Max.operating pressure: 70 kgf/cm2
Min.operating pressure: 15 kgf/cm2
Double acting
NOTE:
The acting speed of clamping-unclamping should be slowed down.
For customized clamp arm, please don't exceed 1.5 times of the original length and weight.
