Product Details:
Payment & Shipping Terms:
|
Body Material:: | Aluminum | Structure:: | Rotary Cylinder |
---|---|---|---|
Power:: | Pneumatic | Certificate:: | ISO9001, CE, RoHS |
Fluid: | Air(no Lubrication) | Working Type: | Double Acting |
Working Pressure: | 0.15~0.95MPa | Working Temperature: | 0~80 Degree |
Working Speed(mm/sec): | 30~500 | Rotating Stroke: | 15 |
Rotate Angel: | 90 Degree |

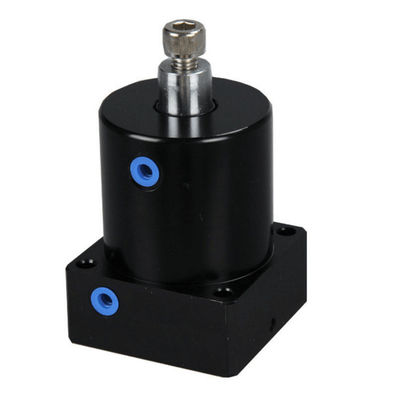

Double acting clamp Left Right rotation pneumatic cylinder 50mm bore rotating swing clamp cylinder 90 degree
Features:
1:SRC Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder
2:Bore size: 25-63mm
3:right and left direction for select.
SRC Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder

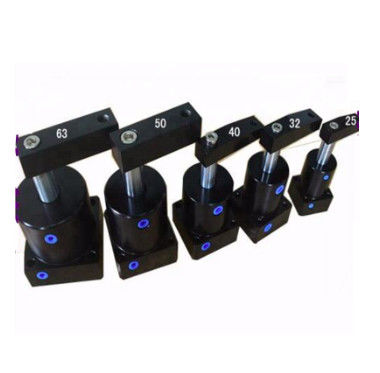

1).Bore:25mm, 32mm, 40mm, 50mm, 63mm
2).Small size and light weight.
3).Long service of life, easy to control and maintain.
4).Interchange with SMC
Bore size(mm) | 25 | 32 | 40 | 50 | 63 |
Fluid | Air(no lubrication) | ||||
Working Type | Double acting | ||||
Working temperature | 0.15~0.95MPa | ||||
Working temperature | 0~60 degree | ||||
Working speed(mm/sec) | 30~500 | ||||
Rotate stroke | 11 | 13 | 15 | ||
Rotate angel | 90 degree(can customize 0/45/60 degree | ||||
Rotate direction | left(anticlockwise),right(clockwise) | ||||
Port size | M5x0.8 |
