Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminium Alloy | Power: | Pneumatic |
|---|---|---|---|
| Structure: | Piston Structure | Rotation Direction: | Turn Left Or Right |
| Max Bore: | 63mm | Warranty: | 1 Year |
| OEM: | Yes | ||
| High Light: | destaco pneumatic clamps,destaco swing clamps |
||

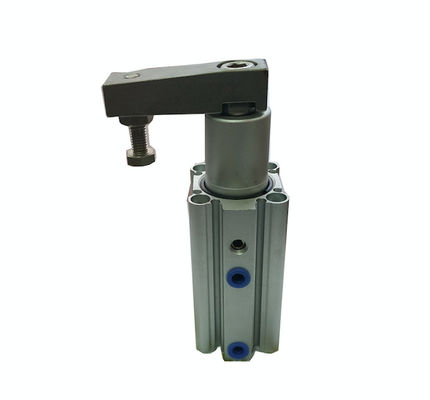

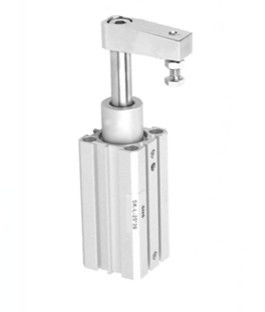

Aluminum Alloy Swing Clamp Piston Air Cylinders ISO Certified Fixture
Features:
1.Optimized design , compact structure, light weight, long life span and high clamping force make it a perfect fixture
2.This product has long stroke and short stroke
3.Mounting by four screws
4.Applied to industrial automation, clamping of sheet metal, clamping of workpiece on conveyor belt and packing assembly line
5.When the length of the clamping arm need to be increased, do not exceed 15 times of the original length

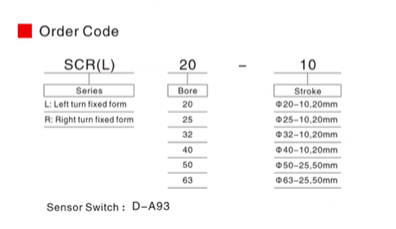

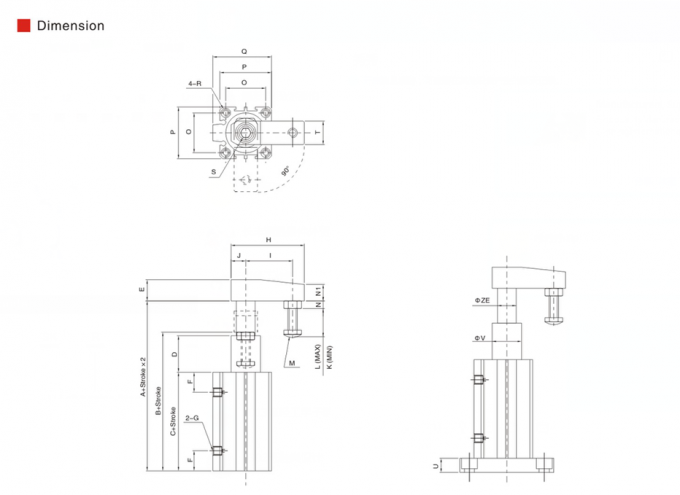

| Bore Size(mm) | A | B | C | D | E | F | G | H | I | J | K | L | M |
| Φ20 | 92.3 | 82.3 | 59.5 | 20.3 | 15.5 | 7.5 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6×1.0×25 Hexagon bolts |
| Φ25 | 93.6 | 83.6 | 61.2 | 20 | 15.5 | 8 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6×1.0×25 Hexagon boltslts |
| Φ32 | 113 | 98 | 64 | 31 | 18.5 | 9 | PT1/8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8×1.25×40 Hexagon bolts |
| Φ40 | 114.8 | 99.8 | 66.5 | 30.3 | 18.5 | 10 | PT1/8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8×1.25×40 Hexagon bolts |
| Φ50 | 159.9 | 140.9 | 78.6 | 59.6 | 22 | 10.8 | PT1/4 | 94 | 60 | 20 | 8 | 32 | M10×1.5×50 Hexagon bolts |
| Φ63 | 162.8 | 143.8 | 82.5 | 58.6 | 22 | 11 | PT1/8 | 94 | 60 | 20 | 8 | 32 | M10×1.5×50 Hexagon bolts |
| Bore Size(mm) | N | N1 | O | P | Q | R | S | T | U | V | ZE |
| Φ20 | 5 | 12 | 24 | 34 | - | HoleΦ4.3, ThreadΦM5×0.8x6 Depth; Counterbore holeΦ7x5 Depth; (2-side) | M8x1.25 | 15.9 | 8 | 19 | 12 |
| Φ25 | 5 | 12 | 28 | 40 | - | HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side) | M8x1.25 | 15.9 | 10 | 24 | 12 |
| Φ32 | 6.5 | 14 | 34 | 44 | 50 | HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side) | M10x1.5 | 19 | 10 | 30 | 16 |
| Φ40 | 6.5 | 14 | 40 | 52 | 58 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ9.5x8 Depth; (2-side) | M10x1.5 | 19 | 12 | 30 | 16 |
| Φ50 | 8 | 18 | 48 | 62 | 71 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side) | M12x1.75 | 25.3 | 12 | 39 | 20 |
| Φ63 | 8 | 18 | 60 | 75 | 84.5 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side) | M12x1.75 | 25.3 | 12 | 50 | 20 |
