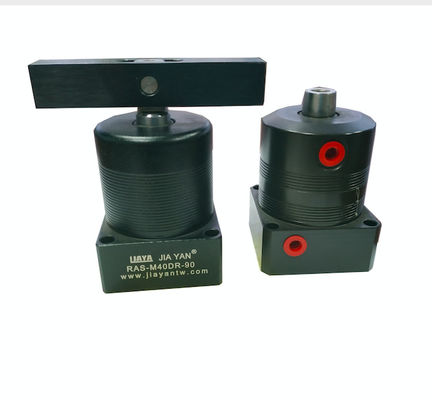

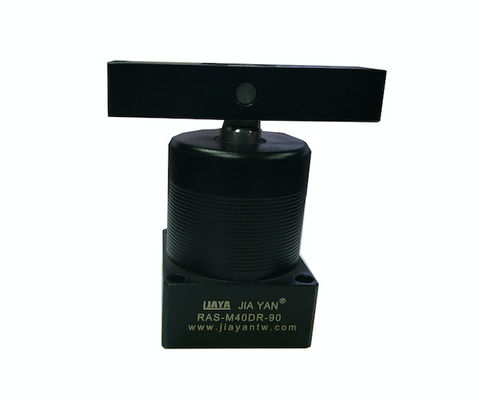

Aluminium Alloy Pneumatic Swing Clamp Cylinder Rotating Welding Fixture

China Aluminium Alloy Pneumatic Swing Clamp Cylinder Rotating Welding Fixture supplier
Aluminium Alloy Pneumatic Swing Clamp Cylinder Rotating Welding Fixture supplier Aluminium Alloy Pneumatic Swing Clamp Cylinder Rotating Welding Fixture supplier

Large Image :  Aluminium Alloy Pneumatic Swing Clamp Cylinder Rotating Welding Fixture

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: ASR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set per week
Price: negotiable
Packaging Details: poly bag and carton
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 2000 set per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Structure: Rotary Cylinder
Power: Pneumatic Maximum Stroke: 20 Mm
Shaft Diameter: 10, 20, 30, 50 Fluid: Air
Operating Temperature: 0~60°C Thread: BSP
Port:: M5 M6 1/8 Working Pressure:: 0-10bar
High Light:

destaco pneumatic clamps

,

pneumatic air clamps



Pneumatic Swing Clamp Cylinder Rotary Fixture Welding Clamps



Specification

1. ASR Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder
2. Bore size: 25-63mm
3. right and left direction for select.

ASR Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder


Features:
1).Bore:25mm, 32mm, 40mm, 50mm, 63mm
2).Small size and light weight.
3).Long service of life, easy to control and maintain.
4).Interchange with SMC



Bore size(mm) 25 32 40 50 63
Fluid Air(no lubrication)
Working Type Double acting
Working temperature 0.15~0.95MPa
Working temperature 0~60 degree
Working speed(mm/sec) 30~500
Rotate stroke 11 13 15
Rotate angel 90 degree(can customize 0/45/60 degree
Rotate direction left(anticlockwise),right(clockwise)
Port size M5x0.8


Aluminium Alloy Pneumatic Swing Clamp Cylinder Rotating Welding Fixture

Tag:

destaco pneumatic clamps,

pneumatic air clamps
