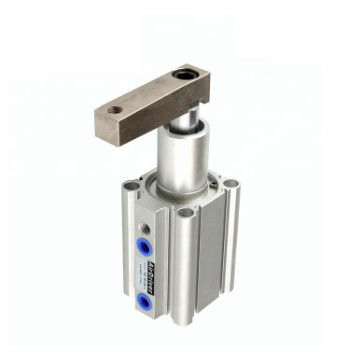

Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps

China Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps supplier
Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps supplier Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps supplier

Large Image :  Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps

Product Details:

Place of Origin: Dongguan China
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: MK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 1000 sets per week
Contact Now
Detailed Product Description
Material: Aluminium Alloy Type: Standard
Structure:: Rotary Cylinder Power:: Pneumatic
Maximum Stroke: 50mm Shaft Diameter:: 6mm-20mm
Cylinder Diameter:: 12mm-63mm Material Of Rod:: Stainless Steel
High Light:

pneumatic air clamps

,

destaco swing clamps



Rotary Clamp Pneumatic Aluminium Alloy Cylinder CNC Machining Center Clamps



Product Description



Bore Size(mm) 12 16 20 25 32 40 50 63
Acting Double acting
Back-Rotation Angle 90°± 10°
Back-Rotation Direction Left(Counterclockwise) , Right(Clockwise)
Back-Rotation Distance 7.5mm 9.5mm 15mm 19mm
Clamping Distance 10,20,30mm 10,20,30,50mm
Allowed Bending Torque(N.m) 1 3.8 7 13 27 47 107 182
Theoretical Clamp Force(N) 40 75 100 185 300 525 825 1400
Working Fluid Cleaned Air
Proof Pressure 1.5 Mpa
Working Pressure 0.1~1Mpa 0.1~0.6Mpa
Fluid Temperature With magnetic switch:-10~+60℃(No freezing), Non-magnetic switch:-10~+70℃(No freezing)
Lubrication No need
Piping Port Size M5*0.8 G1/8" G1/4"
Mounting Through-hole/ Both ends tapped common /Head flange
Buffering Rubber bumper
Stroke Length Tolerance +0.6mm ~ -0.4mm
Piston Speed 50-200mm/s
Non-Rotation Piston Rod Accuracy ±1.4° ±1.2° ±0.9°

±0.7°

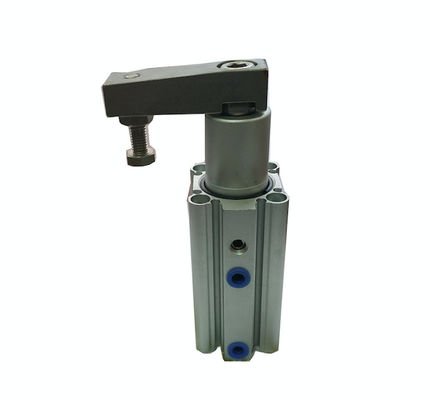

Rotary Pneumatic Air Clamps Aluminium Alloy Cylinder CNC Machining Center Clamps
