Product Details:
Payment & Shipping Terms:
|
| Material: | High Strength Steel | Weight: | 1136g And 2273g |
|---|---|---|---|
| Holding Force: | 1136 And 2273kgs | Plunger Stroke: | 59.4 And 77.8 Mm |
| Supplied Handle And Base: | Yes | Warranty: | 1 Year |
| High Light: | push pull action toggle clamps,push pull type toggle clamp |
||

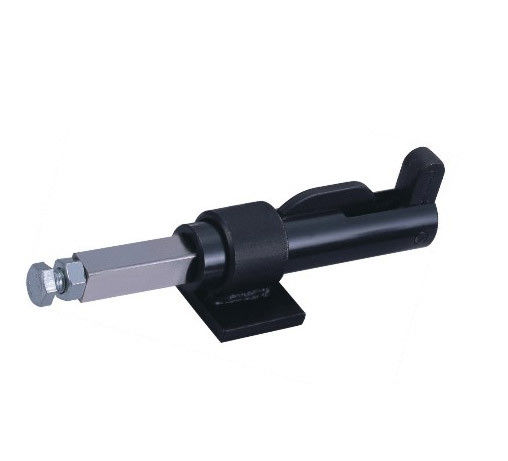

Max Clamping Force 2273 kgs Heavy Duty Push Pull Toggle Clamp 30519 and 30619 Machinery Manufacture Clamps
Product Specification and features:
Material :High Strength Steel
Weight :1700g and 3600g
Holding Capacity :1136 and 2273 kgs
Plunger Stroke:55.9 and 577.8 mm
Supplied Handle and base : Yes
Product features:
1.High strength steel construction and precisely broached body for square plunger, allow these clamps to be used as pin locating gauges.
2.Hardened steel pins and bushing fitted at pivot points.
3.Supplied with separate handle and base. Users can weld them at desired position.
4.Clamps can be mounted by drilling holes on the base or be welded at a proper position
Application: Machinery manufacture and plane manufacture fixture.
