Product Details:
Payment & Shipping Terms:
|
| Material: | High Strength Steel | Weight: | 1400g And 2920g |
|---|---|---|---|
| Holding Capacity: | 1136 And 2273 Kgs | Plunger Stroke: | 46 And 59.5mm |
| Supplied Handle And Base: | Yes | Warranty: | 1 Year |
| High Light: | push pull action toggle clamps,push pull type toggle clamp |
||

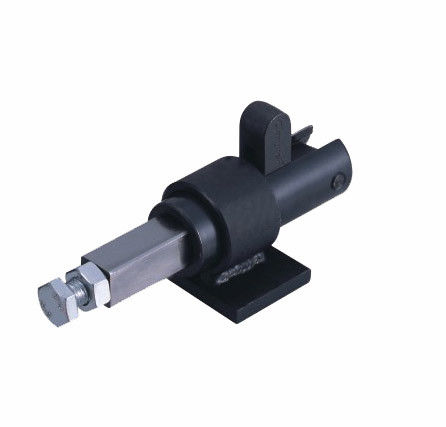

Heavy Duty Push Pull Toggle Clamp 30509 and 30609 Holding Capacity 2273 kgs High Strength Fixture for Heavy Industry
Product Specification and features:
Material :High Strength Steel
Weight :1400g and 2920g
Holding Capacity :1136 and 2273 kgs
Plunger Stroke:46 and 59.5mm
Supplied Handle and base : Yes
Product features:
1.High strength steel construction and precisely broached body for square plunger, allow these clamps to be used as pin locating gauges.
2.Hardened steel pins and bushing fitted at pivot points.

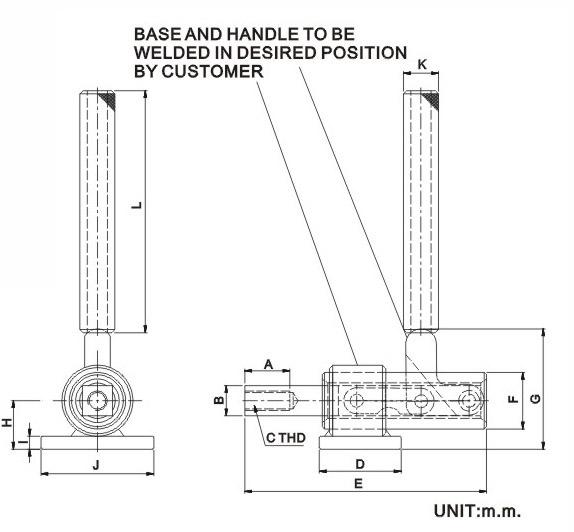

3.Supplied with separate handle and base. Users can weld them at desired position.
4.Clamps can be mounted by drilling holes on the base or be welded at a proper position
