Product Details:
Payment & Shipping Terms:
|
| Structure: | Air Cylinder And Toggle Clamp | Bar Opens: | 92 Degree |
|---|---|---|---|
| Weight: | 620g | Port Size: | G1/8'' |
| Bore Of Cylinder: | 32mm | Cylinder Piston Area: | 7.07cm2 |
| Max Air Pressure: | 10kg/cm2 | Max Holding Capacity: | 91kgs |
| High Light: | pneumatic air clamps,pneumatic hold down clamps |
||

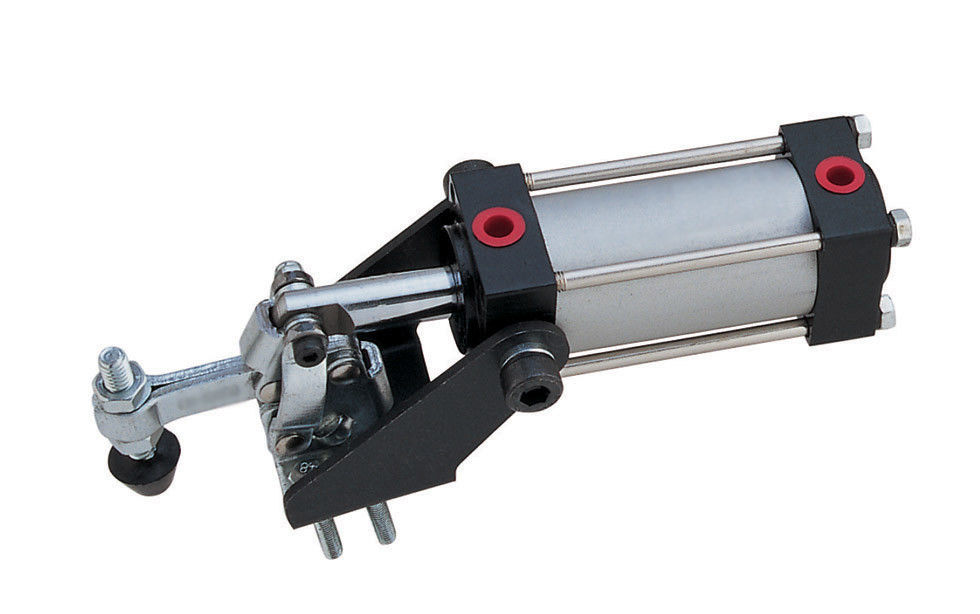

Air Powered Clamp Pneumatic Hold Down Clamp 12050 A with Port Size G1/8" Destaco 802 Holding Force 91kgs
Product Specification :
Structure:air cylinder and toggle clamp
Bar Opens:92 degree
Weight :620g
Port Size :G1/8''
Bore of Cylinder:32mm
Cylinder Piston Area:7.07cm2
Max Air Pressure:10kg/cm2
Max Holding Capacity:91kgs
Product features:
1.Air Powered Clamps (Destaco 802)
2.Great for machine operation, welding, mould, electronic equipment assembly, etc field
3.Material : Metal, Plastic; Package : 1 x Toggle Clamp
4.HOLDING CAPACITY 200.2Ibs
5.with port size G1/8"
P:170 ;A:57;D:35;E:FC-10138;F:25.7;G:27;H:12.7;J:5.2;K:69;L:51
