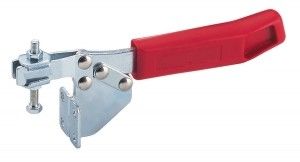

Mini Horizontal Toggle Clamp 21383 250Kg Holding Capacity Drilling Machine Clamp

China Mini Horizontal Toggle Clamp 21383 250Kg Holding Capacity Drilling Machine Clamp supplier

Large Image :  Mini Horizontal Toggle Clamp 21383 250Kg Holding Capacity Drilling Machine Clamp

Product Details:

Place of Origin: Dongguan China
Brand Name: dls
Certification: ISO9001:2008
Model Number: 21383

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 8 days
Payment Terms: L/C, Western Union, T/T,PayPal
Supply Ability: 4000 pcs per week
Contact Now
Detailed Product Description
Material: Cold Roll Sheet WEIGHT: 250g
Holding Capacity: 20kgs SPINDLE SUPPLIED: M8x50
BAR OPENS: 72 Degree HANDLE OPENS: 72 Degree
High Light:

horizontal handle toggle clamp

,

destaco toggle clamp



250Kg Holding Capacity Horizontal Type Toggle Clamp 21383 Drilling Machine Clamp

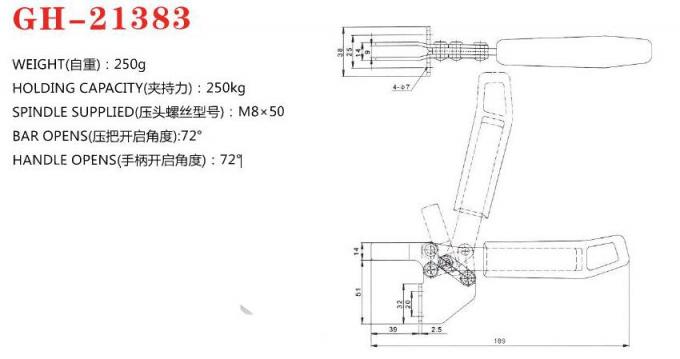

Product Specification and features:



WEIGHT: 250g
HOLDING CAPACITY: 250kg
SPINDLE SUPPLIED:M8 x 50
BAR OPENS:72
HAN DLE OPENS : 72

1.Side Mount hold-down toggle clamp, short bar, flanged base.

2.Most suitable for quickly holding down sheet metal or circuit boards, for machine operation, welding, mould, electronic equipment assembly, etc field.

3.During clamping, the lever is controlled to prevent impact on functioning due to side thrust.

4.Rubber cover handle for easy, safe and comfortable operation.



Mini Horizontal Toggle Clamp 21383 250Kg Holding Capacity Drilling Machine Clamp
