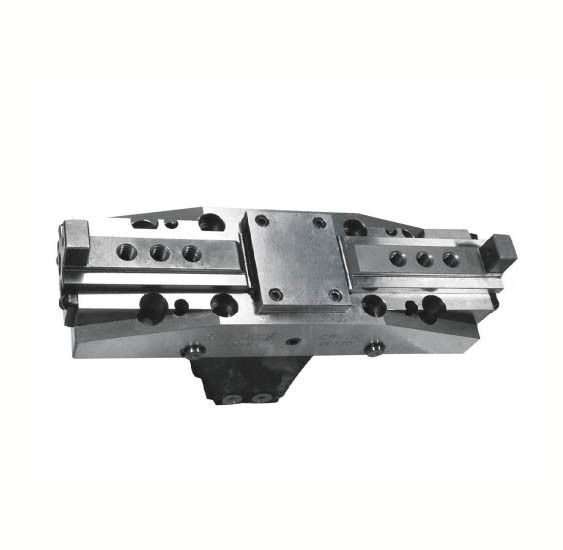

Synchronous High Speed Hydraulic Cylinder High Strength High Clamping Force

: Large Image : Synchronous High Speed Hydraulic Cylinder High Strength High Clamping Force

Product Details:

Place of Origin:	Dongguan China
Brand Name:	Jiayan
Certification:	ISO9001:2008
Model Number:	cp

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	poly bag and carton box
Delivery Time:	7 days
Payment Terms:	L/C, T/T, Western Union,PayPal
Supply Ability:	400 sets per week

Contact Now

Detailed Product Description

Material:	Carbon Steel	Max. Operating Pressure:	350 Kgf/cm2
Min. Operating Pressure:	10 Kgf/cm2	Max Clamping Force:	2071 Kgs
RANGE OF TEMPERATURE(°C ):	-10 ~ + 70 (°C )	Warranty:	1 Year
High Light:	double rod end hydraulic cylinder , light duty hydraulic cylinders

Synchronous Hydraulic Clamp Cylinder High Strength Carbon Steel High Clamping Force

Features:

1.Crank-type two-slide synchronous cylinder with long stroke of the slider.

2.The surface is hardened and precise finish.

3. User-friendly lubrication

4.High clamping precision and excellent dustproof effect

5. Max. operating pressure 35 kgf/cm2

Min. operating pressure 10 kgf/cm2

Model	CP-20	CP-30A	CP-30	CP-50
Eff.piston Area Clamp(cm2)	28.27	28.27	28.27	38.48
Slider Stroke(mm)	20	30	30	50
Clamping Force At 35kgf/cm2	1653	1806	1806	2071
Range Of Temperature(°c )	-10 ~ + 70 (°C )

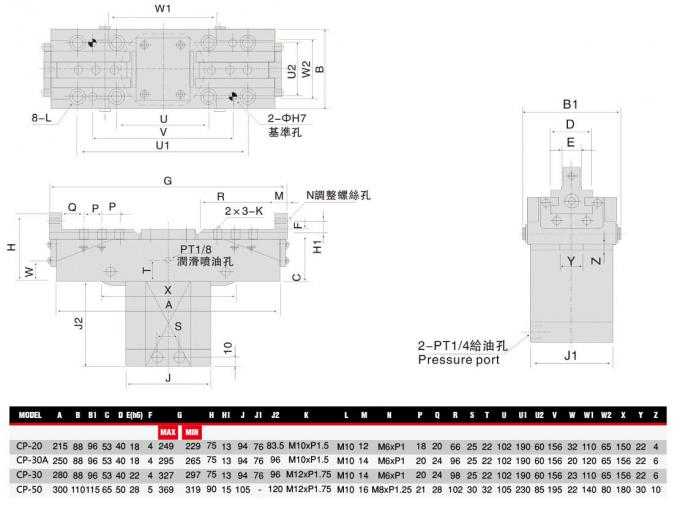

Hydraulic Cylinder Dimensions

Synchronous High Speed Hydraulic Cylinder High Strength High Clamping Force

Tag:

double rod end hydraulic cylinder,

light duty hydraulic cylinders
