High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder

China High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder supplier
High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder supplier High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder supplier High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder supplier

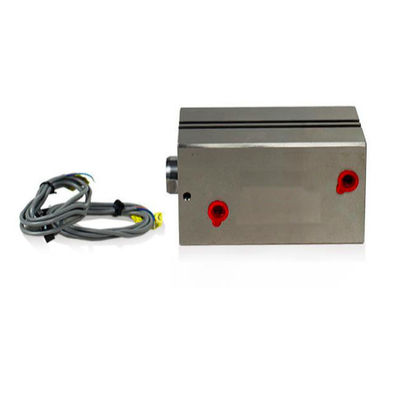

Large Image :  High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder

Product Details:

Place of Origin: Dongguan
Brand Name: Jiayan
Certification: ISO9001:2008
Model Number: RTM 140

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: poly bag and carton box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, PayPal
Supply Ability: 300 sets
Contact Now
Detailed Product Description
Material: Stainless Steel Max. Operation Force: 140kg/cm2
Mounting Type: Axial Mounting Max. Stroke: 50mm
Max. Bore: 80 Sensor Switch: Available
High Light:

double rod end hydraulic cylinder

,

heavy duty linear actuator



Stainless Steel Inductive Hydraulic Cylinder with Sensor Switch Anticorrosive High Clamping Force Cylinder



This cylinder can be used in the harsh work environment



Ordering Code

RTM140- SD- 32 x 20 N -- S1

1                2     3     4   5     6



1 Series RTM
2 Mounting Type

DS: axial single end rod type

SW: axial double end rod type
3 Bore of Cylinder 32,40,50,63,80
4 standard stroke 10,20,30,40,50
5 rod end type N:Female thread  W:male thread
6 sensor switch

S1:1pc , S2: 2pcs

Voltage: DC 4-24V; Ac 4-120v

Currency: 5-40mA



Stainless Steel Hydraulic Cylinder Stroke Specifications

High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder

High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder

Pressure

Bores of Cylinde  Dia.of Piston Area (cm2)       OPERATION PRESSURE(kgf/cm2)                        Temperature

High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder

High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder

Stainless Steel Hydraulic Cylinder Dimension Table

High Force Push Pull Hydraulic Cylinder / Stainless Steel Hydraulic Cylinder



Tag:

double rod end hydraulic cylinder,

heavy duty linear actuator
