Material: | Carbon Steel | Mounting Type: | Side-mounted Single Or Double End Rod Type |
---|---|---|---|
Max. Stroke: | 50mm | Max. Bore Of Cylinder: | 63mm |
Flow Speed: | 8-100mm/sec | Warranty: | 1 Year (change New One For Free) |
High Light: | light duty hydraulic cylinders,heavy duty linear actuator |

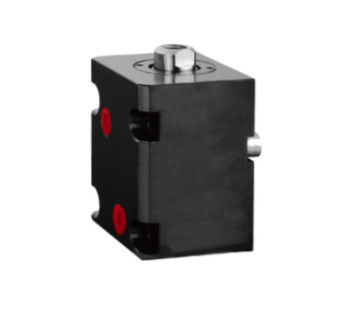

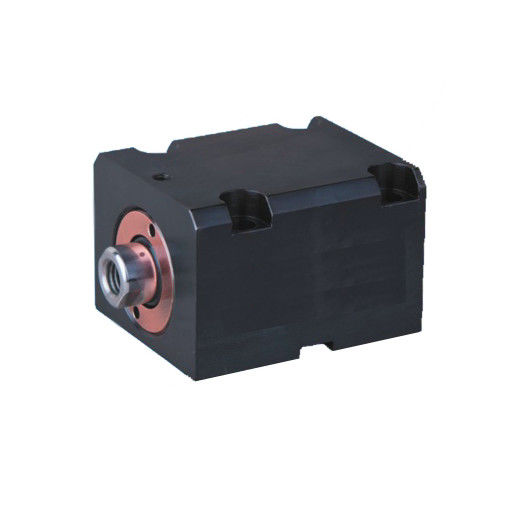

Side-mounted Single End Rod Type And Double End Rod Type Thin Hydraulic Cylinder Machining Fixture Cylinder
Ordering Code
CHTB - LA 32×20 N
1 2 3 4 5
1 | Series | CHTB |
2 | Mounting type | LA:Side-mounted single end rod type LW:Side-mounted double end rod type |
3 | Bore of Cylinder | Φ32 , Φ40 , Φ50 , Φ63 |
4 | Standard stroke | Please refer to the <stroke specification> |
5 | Rod end type |
N: Female thread N W:Male thread W |
Hydraulic Cylinder Stroke Specifications
Pressure
Bores of Cylinde Dia.of Piston Area (cm2) OPERATION PRESSURE(kgf/cm2) Temperature
CHTB Hydraulic Cylinder Side-mounting type LA&LW
