Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Max.operating Pressure: | 70 Kgf/cm2 |
|---|---|---|---|
| Min.operating Pressure: | 10 Kgf/cm2 | Max Clamping Force: | 1553 Kgs |
| Temperature Range: | -10~+70°C | Warranty: | 1 Year (change New For Free) |
| High Light: | pneumatic link clamp,pneumatic lever clamp |
||

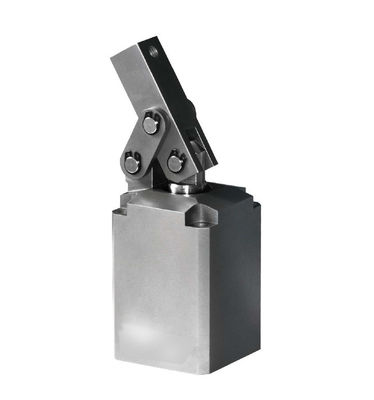

Hydraulic Lever Clamp Cylinder Simple Mounting Type High Tightness Max Clamping Force 1553kgs
FEATURES:
This series product with the optimal design, so the clamping capacity is better than the traditional product.
The integrated structure product was made more compact and strengthful
Product with special dust proof design, dust proof and sealing have been improved,
so it has high sealing performance.
Product with the box-type design for convenient mounting
Max.operating pressure :70 kgf/cm2
Min.operating pressure :10 kgf/cm2
NOTE
The flow control valve is recommended

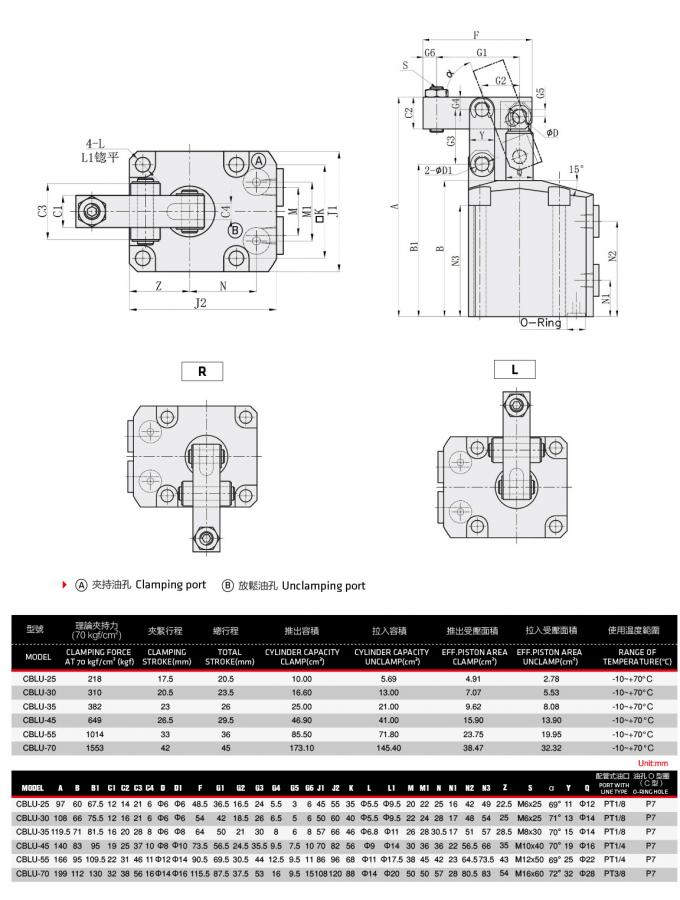

ORDER Code:
CBLU – 30 C L
|
CBLU |
Series |
CBLU |
|
30 |
Bore of Cylinder | Φ 25 , Φ 30 , Φ 35 , Φ 45 Φ 55 , Φ 70 |
|
C |
Piping Type |
Blank: line type C: manifold with flow type |
|
L |
Clamping arm direction |
Blank: standard L:Left R:Right |
