Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Operation Pressure: | 1-7Mpa |
|---|---|---|---|
| Max Withstanding Voltage: | 10.5Mpa | Work Temperature: | -10~+70°C |
| Fluid: | Hydraulic Oil ISO-VG32 | Max Stroke: | 36mm |
| Max Swing Torque: | 9.3N.m | Warranty: | 1 Year (change For Free) |
| High Light: | hydraulic workholding clamping fixture,rotary clamp cylinder |
||

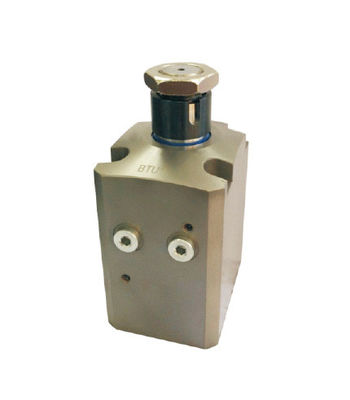

Patented Swing Clamp New Design Long Life Span at least 100 Million Circle Clamping Force 90KN Dust-proof Design
Features:
1. Adopt special antidust design to guarantee high leakproofness and use corrosion-resistant and dustproof material to tackle cooling liquid
2. Streamlined pisition rod and V-groove S rod design to guarantee stablity and high precision
3. V groove is idea for high speed motion
4. Tapered body to prevent the pile of cooling liquid and metal filing
5. big diameter steel ball to reduce resistance
6. Patented design. Compared with traditional swing clamp, the clamping force of this swing clamp increase by 25%
Specifications
| Model | RBTU02 | RBTU04 | RBTU06 | RBTU10 | RBTU16 | RBTU25 | |
| Cylinder Force (Under oil pressure 7Mpa) (kN) | 2.8 | 4.4 | 6.3 | 9.9 | 16.3 | 25.8 | |
|
Clamping Force |
Under oil pressure 7Mpa (kN) | 2.4 | 3.8 | 5.3 | 8.3 | 13.5 | 21.2 |
| Clamping arm Length (mm) | 35 | 40 | 50 | 60 | 70 | 90 | |
| Bore of cylinder (mm) | 29 | 36 | 42 | 52 | 65 | 82 | |
| Dia. of Piston Rod (mm) | 18 | 22.4 | 25 | 30 | 35.5 | 45 | |
| Piston Area (cm2) | 4.1 | 6.2 | 8.9 | 14.2 | 23.3 | 36.9 | |
| Swing Angle | 90 Degree +/-3 Degree | ||||||
| Positioning Pin Groove Precision | +/- 1 degree | ||||||
| Repeating Clamping precision | +/-0.5 degree | ||||||
| Total stroke (mm) | 18 | 20.5 | 23.5 | 26.5 | 28.5 | 36 | |
| Swing stroke (mm) | 10 | 12.5 | 13.5 | 16.5 | 18.5 | 23 | |
| Clamping stroke (mm) | 8 | 8 | 10 | 10 | 10 | 13 | |
| Max Swing Torque (N.m) | 0.7 | 1.6 | 1.8 | 3.4 | 5.6 | 9.3 | |
| Cylinder Capacity | Clamp (cm3) | 7.3 | 12.8 | 21.0 | 37.5 | 66.4 | 132.9 |
| Unclamp (cm3) | 11.9 | 20.9 | 32.6 | 56.3 | 94.6 | 190.1 | |
| Weight (kg) | 1.4 | 1.9 | 2.6 | 4.4 | 6.9 | 12.9 | |
